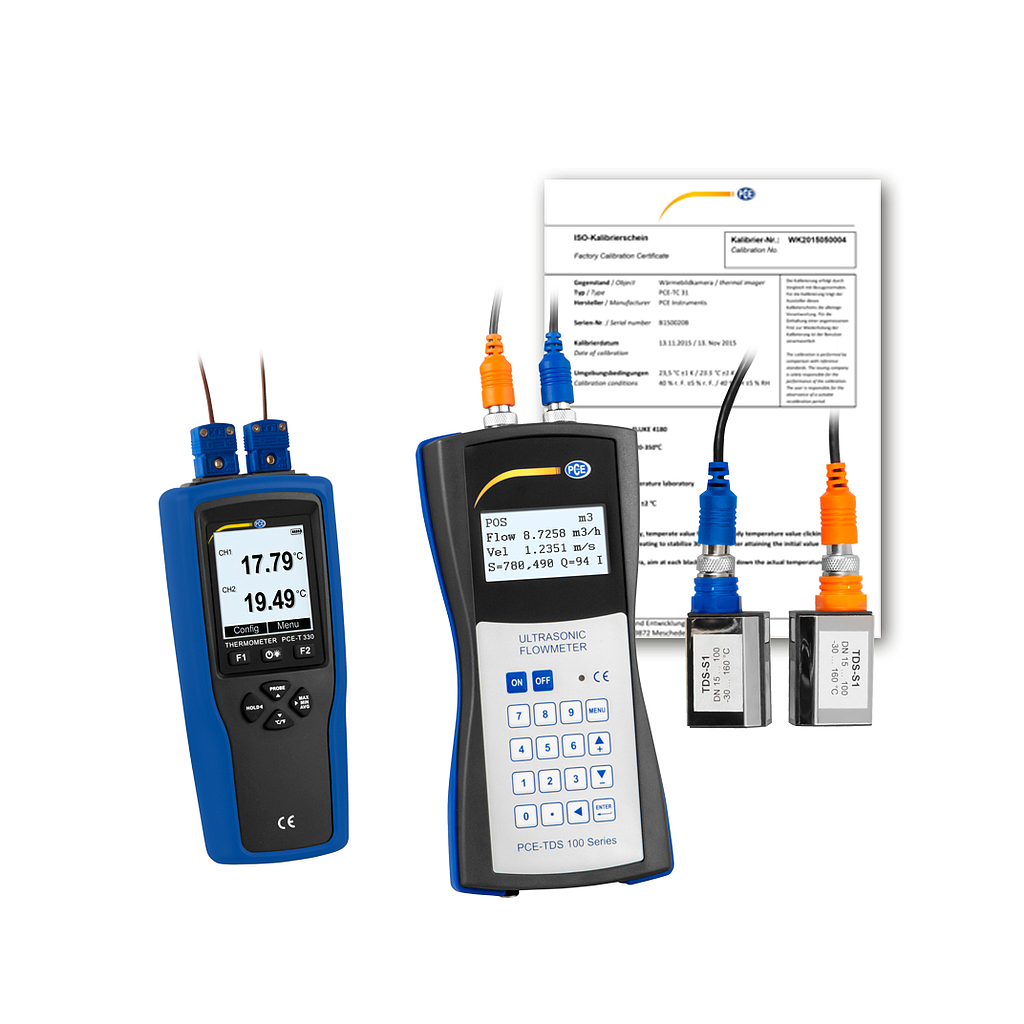

PCE PCE-TDS 100HS+-ICA Ultrasonic Flow Tester

Handheld measuring range: -32 ... +32 m/s

Resolution: 0.0001 m/s

Accuracy for DN ≥ 50 mm:

for DN < 50 mm:

±3.5 % of measured value

±1.0 % of measured value

Reproducibility ±1.0 % of measured value

Media

All liquids with an impurity

  <5% and a flow >0.03 m³/h

Flow units Cubic meter [m³]

  Liter [l]

  Gallon (USA) [gal]

  Imperial gallon (UK) [igl]

  Million USA gallon [mgl]

  Cubic foot [cf]

Barrel (USA) [bal]

  Imperial barrel (UK) [ib]

Oil barrel [ob]

Time settings per day [/d]

per hour [/h]

  per minute  [/m]

  and per second [/s]

Data logger 1800 measurements

Interface USB (for online measurement and reading of the internal memory)

Protection IP 52

Power supply 3 x AA NiMH rechargeable battery / 2100 mAh

  (at full charge 12h running time) 100 … 240 V AC 50/60 Hz

Dimensions 214 x 104 x 40 mm / 8.4 x 4.1 x 1.5"

Weight 450 g / 15 oz

Sensor nominal width DN 15 … 100, 20 … 108 mm / approx. 3/4 ... 4"

Temperature of liquid -30 … 160 °C / -22 ... 320 °F

Dimensions 50 x 45 x 45 mm / 1.9 x 1.7 x 1.7"

Weight 260 g / 9oz

Technical data evaluation software

- Units of power W, kW, MW, J/h, kJ/h, MJ/h, Btu/h, kBtu/h, MBtu/h

- Units of energy J, kJ, MJ, Wh, kWh, MWh, Btu, kBtu, MBtu

- Graphical representation of flow, flow temperature,

  return temperature, heat output and heat quantity

- Tabular representation of flow, flow temperature,

  return temperature, heat output and heat quantity

- Mobile and stationary measurement mode

- Real-time data logger with unlimited runtime (only limited by PC memory capacity)

- Data export function

- User-guided software operation with step-by-step instructions for

  device and software configuration

Technical Data Temperature Datalogger PCE-T 330

Measuring range thermocouple Type K  -200 … +1370 °C / -328 ... 2498 °F

Resolution 0.01 °C

Accuracy* ±(0.3 % of rdg. +0.40) °C*

Measuring range thermocouple Type T --200 … +400 °C / -328 ... 752 °F

Resolution/td> 00.01 °C

Accuracy*/td> ±±(0.3 % of rdg. +0.40) °C*

Measuring range thermocouple Type J --200 … +1200 °C /  -328 ... 2192 °F

Resolution/td> 00.01 °C

Accuracy*/td> ±±(0.3 % of rdg. +0.40) °C*

Measuring rate 2/s

Operating temperature -10 … +50 °C / 14 ... 122 °F

Storage temperature -20 … +60 °C (without batteries) / -4 ... 140 °F

Power supply 3 x AAA batteries / 1.2 V battery

Battery life ca. 190 h

  (without backlight, battery capacity 1200 mAh,

  ambient temperature 25 °C)

Protection class IP52 (with protective cover and connected sensor)

Norm/ certification CE/EMC ROHS
