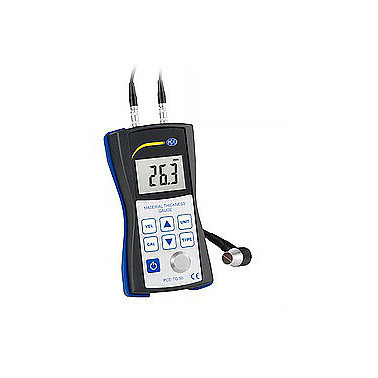

PCE TG 50 超声波测厚仪

Manufacturer:  PCE-UK

Model: TG-150

Warranty: 12 months


Measurement range            1.2 ... 200 mm / 0.05 ... 7.87 in (steel)

Accuracy ± 0.5% v. Mw. ± 0.1 mm / ± 0.00393701 in

Transducer 5 MHz frequency, 8 mm / 0.32 inch diameter; Probe support surface: 10.2 mm / 0.4 in diameter; Head: 15.4 mm diameter / 0.61 in

Resolution 0.1 mm / 0.001 in

Ultrasound velocity 800 ... 9950 m/s / 2624.67 ... 32644.36 ft/s (adjustable)

Display 4-digit LCD

Operating conditions -10 ... 50°C / 14 ... 122°F; Relative humidity: < 80% RH

Calibration block 5.0 mm / 0.2 in steel (integrated)

Measuring units mm or in (adjustable)

Material temperature 0 ... 50°C / 32 ... 122°F (permanent); 50 ... 85°C / 122 ... 185°F (for 5 minutes, then 30 minutes cooling below 50° C / 122°F)

Data interface RS-232 port

Power supply 3 x 1.5V AAA batteries (approx. 250 hours of battery life)

Dimensions Approx. 142 x 77 x 40 mm / 5.6 x 3.1 x 1.6 inches (handset)

Weight Approx. 265 g / < 1 lb (handset with batteries and probe)
