PCE VM 22-ICA 振动计 (1~10.000 Hz; 0~200 m/s²; 0~200 mm/s; 0~2000 µm; -70~380°C )

- Frequency:

Measuring range: 1 ... 10,000 Hz

Resolution: 0.1 Hz

Accuracy: ±5 %

- Acceleration:

Measuring range: 0 ... 200 m/s²

Resolution: 0.01 m/s²

Accuracy: ±5 %

- Speed:

Measuring range: 0 ... 200 mm/s

Resolution: 0.01 mm/s

Accuracy: ±5 %

- Displacement:

Measuring range: 0 ... 2000 µm

Resolution: 0.01 µm

Accuracy: ±5 %

- Infrared temperature measurement:

Measuring range: -70 ... 380 °C / -94 ... 716 °F

Resolution: 0.1 °C / °F

Accuracy:

±0.5% at (0…+60°C), (32 ... 140 °F)

±1% at (-40 ... 0, 60 ... 120 °C), (-40 ... 32, 140 ... 248 °F)

±2% at (-70 … -40, 120 ... 180 °C), (-94 ... -40, 248 ... 356 °F)

±4% at (180 ... +380 °C), (356 ... 716 °F)

Emissivity: 1 fixed

- Tachometer:

Measuring range: 10 … 200,000 RPM

Resolution: 0.1 RPM

Accuracy: ±0.1% and ±1 RPM

Units: RPM, Hz

- Further specifications for the handheld device:

FFT spectrum resolution: 400, 800, 1600 lines

Dynamic range: 106 dB

A/D converter resolution: 24 bit

Storage space: 4 GB

Display: 128 x 160 pixels

Interfaces: Micro USB interface

Power supply battery: 3.7 V, 1000 mAh battery

Battery life: ca. 8 hours

Power supply for power pack: 5 V DC, 1 A

Operating conditions: 0 ... 50 °C / 32 ... 122 °F, <85% RH, non-condensing

Storage conditions: -20 ... 60 °C / -4 ... 140 °F, <85% RH, non-condensing

Dimensions: 132 x 70 x 33 mm / 5.2 x 2.7 x 1.3"

Weight: 150 g / 5.3 oz

- Vibration sensor specifications:

Sensitivity: 100 mV/g

Cable length: ca. 1.5 m / 4.9 ft

Connection: 2 pin MIL-DTL-5015

Case material: 316L stainless steel

Dimensions: Ø25 x 53 mm / Ø0.98 x 2.08"

Weight : 86 g / 3.0 oz

- Magnetic holder specification

Diameter: 30 mm / 1.18"

Magnetic force: 20 kg / 44 lbs

Connection thread: 1/4"-28 UNF female

Smallest radius: 20 mm / 0.78"

- Infrared and RPM sensor specifications:

Cable length: ca. 1.2 m / 3.9 ft

Dimensions: Ø16 x 83 mm / Ø0.63 x 3.26"

Weight : 75 g / 2.6 oz

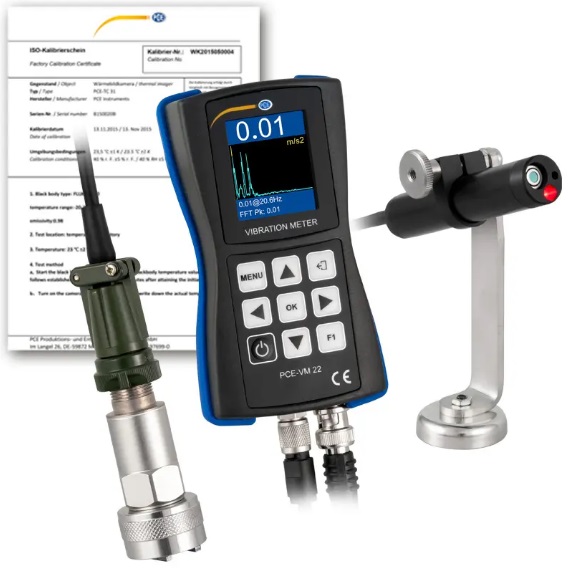

Delivery Scope:

1 x Vibration Analyzer PCE-VM 22-ICA

1 x Vibration sensor with connection cable and magnetic holder

1 x Infrared sensor with speed sensor

1 x Magnetic holder

1 x USB charging adapter

1 x Micro USB cable

1 x Transport case

1 x Instruction manual

1 x ISO Calibration Certificate
