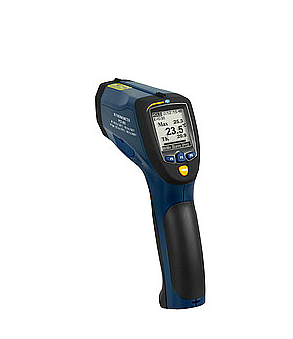

PCE 893 红外测温仪

-Infrared measurement:

Infrared measurement: -50 ... 1200 °C / -58 ... 2192 °F

Resolution: 0.1 at display <1000; 1 at display  >1000

Accuracy: ±3 °C / 5.4 °F (-50 ... 20 °C / -58 ... 68 °F)

  ±1 % ±1 °C / ±1.8°F (20 ... 500 °C / 68 ... 932°F)

  ±1.5 % (500 ... 1000 °C / 932 ... 1832 °F)

  ±2 % (1000 ... 1600 °C / 1832 ... 2912 °F)

The accuracies apply at an ambient temperature of 23 ... 25 °C (73 ... 77 °F)

Repeatability: ±1.5 °C / 2.7 °F (-50 ... 20 °C / -58 ... 68 °F)

  ±0.5 % or ±0.5 °C / 0.9 °F

  (20 ... 1000 °C / 68 ... 1832 °F)

  ±1.0 % (1000 ... 1600 °C / 1832 ... 2912 °F)

- Thermoelement:

Measuring range: -50 ... 1370 °C / -58 ... 2498 °F

Resolution: 0.1 at display <1000; 1 at display  >1000

Accuracy: ±2.5 °C / ±3.6°F (-50 ... 0 °C / -58 ... 32°F)

  ±0.5 % ±1.5 °C / 3 °F

  (0 ... 1370 °C / 32 ... 2498 °F)

Measurement spot ratio: 50:1

Response time: 150 ms

Spectral range: 8 ... 14 µm

Emissivity: Adjustable 0.10 ... 1.0

Display overrange: The display will show "----"

Display laser diode: LCD with backlight

Output: <1 mW

Wavelength: 630 ... 670 nm

Classification: Class 2

Power supply: 9 V block battery

Operating conditions: 0 ... +50 °C / 32 ... 122 °F

Storage conditions: -10 ... +60 °C / 14 ... 140 °F

Weigh: ca. 282 g without battery

Dimensions: 200 x 55 x 150 mm / 7.8 x 2.1 x 5.9"

Delivery scope:

1 x Thermometer PCE-893

1 x Type-K thermocouple

1 x Mini Tripod

1 x USB cable

1 x 9 V battery

1 x User manual
