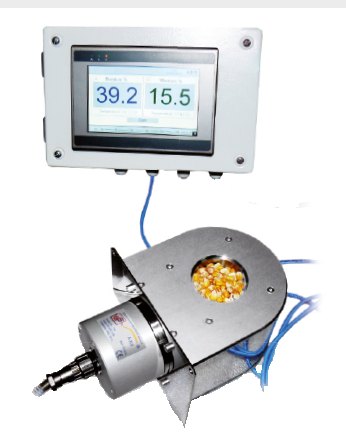

PCE A-315 谷物在线温湿度计

Specification

Measurement range for moisture content during continuous mass flow: 5 ... 40%

Max. absolute error of moisture measurement: ±0.5 % (5 ... 18 %)

±1.0 % (>18 %)

Working temperature range: +5 ... +55 °C / +41 ... 131 °F

Operation mode: Continuous

Power supply: 24 VDC included

Input power: 110 V / 220 V

Warm-up time at start-up: Approx. 60 min

Outputs: 4-20 mA

Inputs: 4-20 mA

Protection class sensor: IP 65 / EX ia

Weight: Max. 6.5 kg / 14.5 lbs
