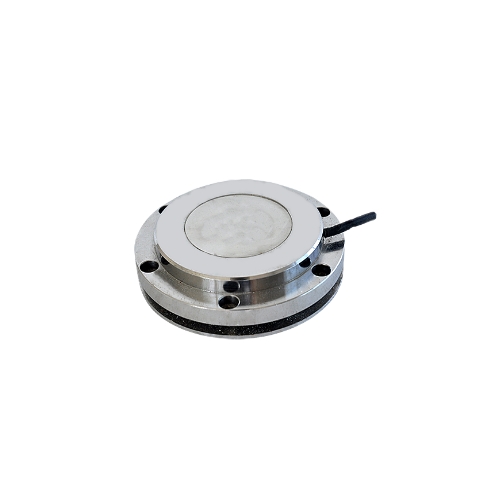

PCE-C-R6S 力传感器(500~5000kg)

  • 制造商: PCE
    Model: C-R6S
    保障: 12 month
    • 报价要求 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: PCE-ANH

Model : PCE-C-R6S

Warranty : 12 months


Specification

Rated load / force: F.S. 500 / 1000 / 2000 / 3000 / 5000 kg

! Rated load / force selectable !

Limit load / force: 120 %

Breaking load / force: 150 %

Rated output: ca. 1.6 mV/V ±0.005

Operating range of supply voltage: 10 V

Maximum supply voltage: 20 V

Deviations of the zero signal: ± 2 % F.S.

Linearity deviation: 0.1 % F.S.

Reverse voltage (hysteresis): 0.1 % F.S.

Repeatability: 0.03 % F.S.

Stress creep (30 min): 0.03 % F.S.

Input resistance: 750 ± 10 Ω

Output resistance: 700 ± 7 Ω

Insulation resistance: ≥5000 MΩ

Nominal range of ambient temperature: -10 … 50 °C / 14 ... 122 °F

Service temperature range: -20 … 60 °C / -4 ... 140 °F

Temperature coefficient of characteristic value: 0.05 % F.S. / 10 °C

Temperature coefficient of zero point: 0.05 % F.S. / 10 °C

Sensor cable: Ø 6 x 4 m / (ends open)

Cable assignment:

EXC+ = red

EXC- = black

SIG+ = green

SIG- = white

REF+ = blue

REF- = yellow

GND = neutral

Material / measuring body: stainless steel

Protection: IP67



Delivery contents

Load cell (depending on the selection) with 4 m connection cable, 6 wires, ends open
