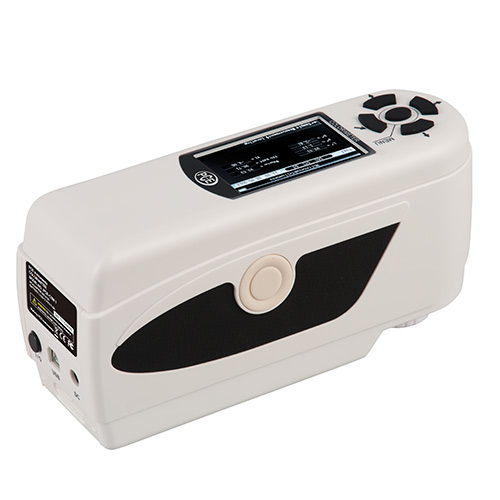

PCE CSM 3 色度计

Specifications

Measuring geometry: 8°/d

Measuring aperture: Diameter 8 mm

Sensor: Silicon photoelectric diode

Color spaces: CIE L*a*b*C*h, CIE L*a*b*

Color difference formular: ΔE*ab, ΔL*a*b, ΔE*C*h

Errors between each equipment: ≤0.50 ΔE*ab

Standard deviation: within ΔE*ab 0.08

Repeatability: average of 30 measurements of standard white plate

Light source: D65

Storage: 100 reference values, 20,000 samples

Interface: USB

Power supply: Rechargeable lithium-ion battery; 3.7 V @ 3,200 mAh

Charging time: 2 h (8 h at first use)

Battery life: > 3,000 measurements

Lamp life: 3 years, more than 1 million measurements

Operating conditions: 0 ... +40 °C / 32 ... +104 °F; 0 ... 85 % RH

Dimensions: 200 x 70 x 100 mm / 7.8 x 2.7 x 3.9 in

Weight: 500 g / 17.6 oz



Dilivery Contents

1 x Color meter PCE-CSM 3

1 x Lithium-ion battery

1 x Mains adapter

1 x Calibration plate (white)

1 x PC software

1 x Instruction manual
