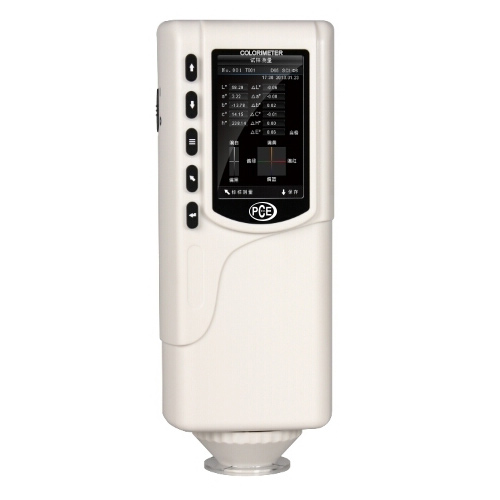

PCE CSM 5 色度计

Specifications

Measuring geometry: 8°/d

Measuring aperture: Ø 6 mm, Ø 10 mm (exchangeable)

Sensor: Silicon photoelectric diode

Color spaces: CIE LAB, XYZ, LCh, RGB, LUV

Color difference formular: ΔE* ab, ΔE( h) , ΔE* uv,ΔE* 94, ΔE*cmc ( 2: 1) , ΔE*cmc ( 1: 1) , ΔE* 00

Other color parameters: WI ( E313，CIE, AATCC，Hunter )，YI ( D1925，313)，Color Fastness, Staining Fastness, J PC79，BFD( 1. 5: 1)，FMCII

Observation angle: CIE 10°

Light source: D65, A, C, D50, F2, F6, F7, F8, F10, F11, F12

Data on display:

colorimetric value

color difference (value/graph)

PASS/FAIL result

color offset

Measurement time: 0.4 s

Repeatability: ΔE* ab 0. 03

Storage: 100 reference values, 20,000 samples

Interface: USB / RS-232

Display: TFT 2.8" (16:9)

Power supply: Rechargeable lithium-ion battery

3.7 V @ 3,200 mAh

Battery life: approx. 5,000 measurements

Lamp life: 5 years, more than 1.6 million measurements

Operating temperature: 0 ... +40 °C / 32 ... 104 °F

Storing temperature: -20 ... +50 °C / -4 ... 122 °F

Dimensions: 205 x 67 x 80 mm / 8 x 2.6 x 3.1 in

Weight: 500 g / 17.6 oz

Dilivery Contents

1 x Color meter PCE-CSM 5

1 x Lithium-ion battery

1 x Mains adapter

1 x Calibration plate (white)

1 x PC software

1 x Instruction manual

1 x aluminum carry case
