PCE CT 40-ICA 涂层测厚仪 (0 ~5000 µm / 200 mils)

Specifications

Measurement range: 0 to 5000 µm / 200 mils

Measurement values:

from 0.0 ... 999 µm / from 1.00 mm ... 5.00 mm

0.0 mils ... 40 mils / 0.04 in ... 0.2 in

Measuring on: only ferrous

Resolution:

0.1 µm in the range 0.0 ... 99.9 µm

1 µm in the range 100 ... 999 µm

0.01 mm in the range 1.00 ... 5.00 mm

respectively

0.01 mils in the range 0.00 ... 9.99 mils

0.1 mils in the range 10.0 ... 99.0 mils

1.0 in the range 100 ... 200 mils

Accuracy of repeat measurements:

±(1 µm +2 %) of 0 µm ... 999 µm / 40 mils

±3.5 % of 1001 µm ... 5000 µm / 40 mils ... 200 mils

Minimum area of measurement: 10 mm x 10 mm / 0.4 in x 0.4 in

Minimal radial curvature: convex: 5 mm / 0.2 in; concave: 30 mm / 1.2 in

Minimum base material thickness: type F: 0.2 mm / 0.001 in; type N: 0.05 mm / 0.002 in

Display: LCD with 4 digits

Operating temperature: 0° C ... 60° C / 32° F ... 140° F

Power: 9 V battery (included)

Dimensions: 118 mm x 58 mm x 38 mm; 4.6 in x 2.3 in x 1.5 in

Weight: 150 g / 0.33 lbs with battery


Dilivery Contents

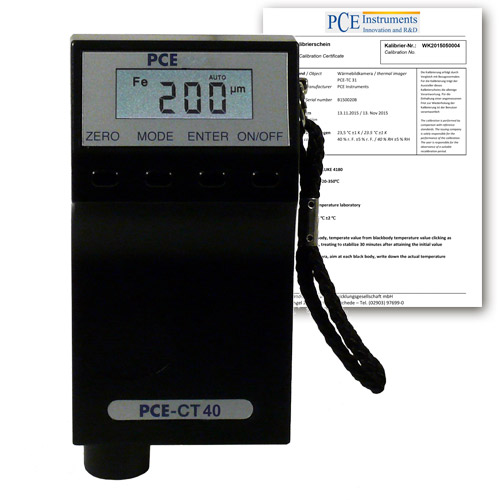

1 x PCE-CT 40 Automotive Tester - Coating Thickness Gauge

1 x set of calibration standards

1 x carrying case

1 x 9 V battery

1 x user manual

1 x ISO calibration certificate
