PCE DC1-ICA 钳形安培 (AC 200A)

- AC current (50 / 60Hz):

Area: 200 A

Resolution: 100-mA

Accuracy: ± 3.0% + 8dgt

- DC power:

Area: 200 A

Resolution: 100-mA

Accuracy: ± 2.8% + 8dgt

AC voltage test (contactless test): 100V AC to 600V AC 50/60 Hz

- Frequency:

Area: 40 ... 50 Hz

Resolution: 0.01 Hz

Accuracy: ± 1.2% + 5dgt

Area: 51 ... 510 Hz

Resolution: 0.1 Hz

Accuracy: ± 1.2% + 3dgt

Area: 0.51 ... 1 kHz

Resolution: 0.001 kHz

Accuracy: ± 1.2% + 3dgt

Measuring point: illumination white LED

Conductor diameter: 18 mm max.

Display: 3 2/3 digit LCD display, with white LED, backlit,

Care: 2 x 1.5V AAA battery

Casing: PVC

Dimensions: 155 x 66 x 31 mm / 6.1 x 2.6 x 1.2 in

Weight: 155 g / < 1 lb

Standardization: EN61010-1; CAT II / 600V, EN61010-2-032; CAT III / 300V

 Delivery scope:

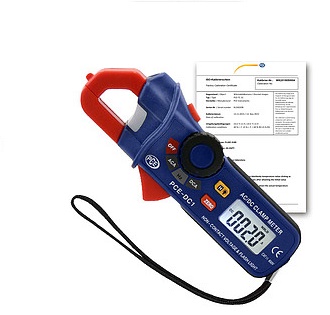

1 x Clamp on tester PCE-DC1

1 x Instrument bag

2 x Battery

1 x Instructions

1 x ISO calibration certificate
