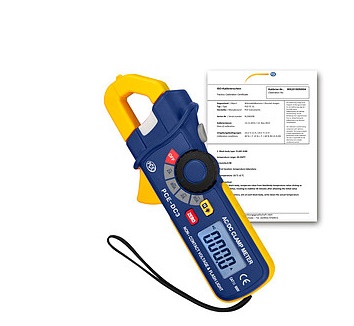

PCE DC3-ICA 数字钳形表

- AC current (50 / 60 Hz):

Range / Resolution / Accuracy:

2 A  / 1-mA / ± 2.8% + 10 dgt

80 A / 100-mA / ± 3.0% + 8 dgt

- DC current:

Range / Resolution / Accuracy:

2 A / 1-mA / ± 3.0% + 10 dgt

80 A / 100-mA / ± 3.0% + 8 dgt

- AC overload protection (Non-contact): 100V AC up to 600V AC 50 / 60 Hz

- Flashlight illumination: White LED

- Conductor diameter: 18 mm / 0.7 in maximum

- Display: 3 2/3 digit LCD display with backlighting

- Power: 2 - 1.5V AAA batteries

- Casing: PVC

- Dimensions: 164 x 65 x 32 mm / 6.4 x 2.5 x 1.2 in

- Weight: 175 g / < 1 lb

- Standards: EN61010-1; CAT II / 600V

EN61010-2-032; CAT III / 300V
