PCE DFG 500 测力计 (0 ... 500 N)

Technical Specifications

Measuring range: 0 ... 500 N

Resolution: 0,05 N

Measuring insecurity: ±0,1 % F.S. (of measuring range)

Measuring unit: N, gf, kgf, ozf, kg, lbf, mN

max. overcharge: ±150 % F.S. (LCD flashed at 110% F.S.)

Display: 160 x 128 dot matrix LCD with LED backgroung lighting

temperature effect: <0.03 % F.S./K

measurement modes: Peak, Auto Peak, Track

sampling rate: 2000 Hz

storage rate: device max. 1 Hz / PC software approx. 60 Hz

software and data cable: incl. Software for evaluation and open loop control

display update: 10 x per second

internal memory: 1000 values

interface: USB, RS-232

Environmental condition:

in use:

-10°C ... 40°C / 20% ... 80% r.h.

storage:

-20°C ... 50°C / 5% ... 90% r.h.

Power supply: Ni-MH rechargeable battery

Battery current time:approx. 16 hours

dimension: approx. 184 x 94 x 35 mm

weight: approx. 1.00 kg

Delivery Scope:

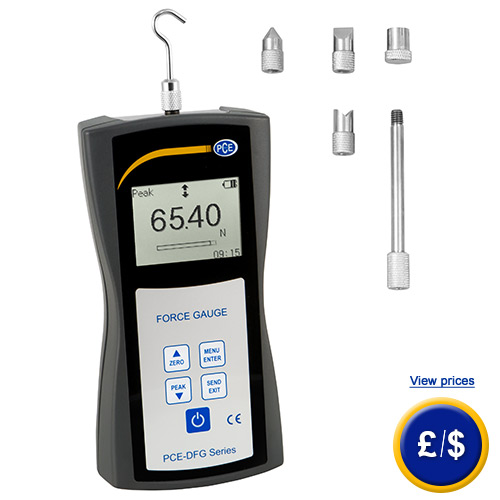

1 x Digital Force Gauge PCE-DFG 500

1 x chisel head adapter

1 x flat head adapter

1 x point head adapter

1 x hook adapter

1 x ball head adapter

1 x connecting bar (90 mm)

1 x software

1 x USB data cable

1 x  power supply

1 x carrying case

1 x manual
