PCE DRS 1 数字盐度折射仪

Specification

Measuring range:

0 ... 28 %, 0 ... 280 ‰ salinity (salt content)

1.000 ... 1.217 SG (specific gravity)

1.3330 ... 1.3900 nD (refractive index)

0 ... +40 °C / +32 ... +104 °F temperature

Resolution: 0.1%, 1 ‰ / 0.001 SG / 0.0001 nD / 0.1 °

Accuracy: ±0.2 %, ±2 ‰ / ±0.002 SG / ±0.0003 nD / ±0.5 °C

General specifications

Automatic temperature compensation (ATC) range: +10 ... +40 °C / +50 ... +104 °F

Measurement speed: Approx. 1 sec.

Sample size: 4 to 5 drops of liquid

Sample well: Stainless steel ring over glass prism

Housing: ABS plastic, IP65 ingress protection rating against water and dust

Power supply: 1 x 1.5V AAA battery

Dimensions: Approx. 121 x 58 x 25 mm / 4.76 x 2.28 x 0.98"

Weight: Approx. 90 g / 0.2 lb (without battery)

Delivery contents

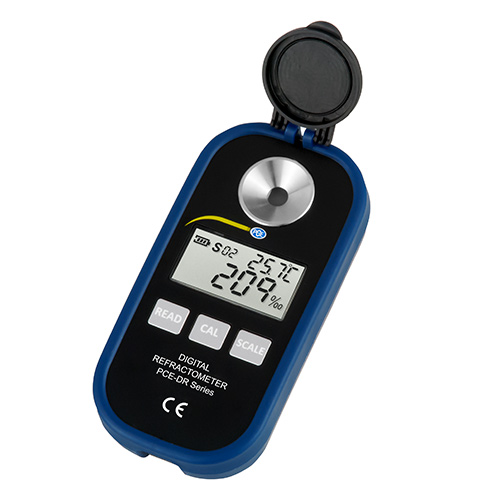

1 x PCE-DRS 1 handheld digital refractometer

1 x pipette

1 x prism cover

1 x 1.5V AAA battery

1 x user manual

1 x carrying case
