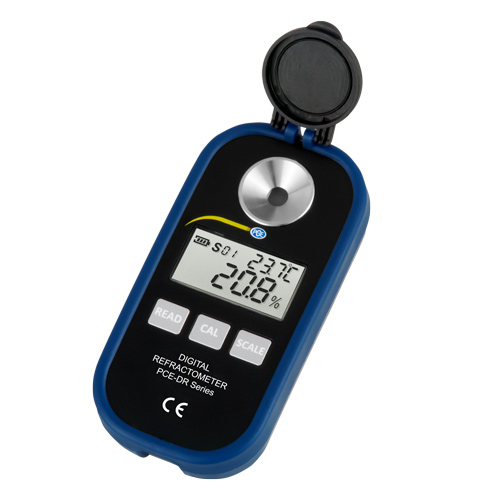

PCE DRW 2 糖折射仪

Specification

Measuring range:

0 ... 45% Brix (sucrose or sugar content)

0 ... 22% vol ap (alcohol content)

3 ... 150 °Oe (°Oechsle)

0 ... 25 KMW (babo)

0 ... +40 °C / +32 ... +104 °F temperature

Resolution: 0.1 % Brix / 0.1% vol ap / 1 °Oe / 0.1 KMW / 0.1 °

Accuracy: ±0.2 % Brix / ±0.2% vol ap / ±2 °Oe / ±0.2 KMW / ±0.5 °C

General specifications

Automatic temperature compensation (ATC) range: +10 ... +40 °C / +50 ... +104 °F

Measurement speed: Approx. 1 sec.

Sample size: 4 to 5 drops of liquid

Sample well: Stainless steel ring over glass prism

Housing: ABS plastic, IP65 ingress protection rating against water and dust

Power supply: 1 x 1.5V AAA battery

Dimensions: Approx. 121 x 58 x 25 mm / 4.76 x 2.28 x 0.98"

Weight: Approx. 90 g / 0.2 lb (without battery)

Delivery contents

1 x PCE-DRW 2 wine handheld digital refractometer

1 x pipette

1 x prism cover

1 x 1.5V AAA battery

1 x user manual

1 x carrying case
