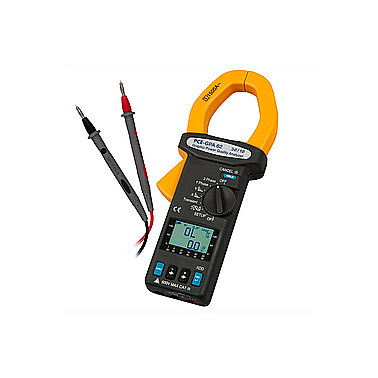

PCE GPA 62 功率分析仪 (1500A)


- Voltage measurement: 4,0 ... 600,0 V RMS value ± 0,5 % of the measured value ± 5 digits / 0,1 V

- Voltage peaks (> 10V): 50 Hz - 60 Hz / ± 5 % ± 50 digits

- Current measurements: 4,0 ... 1500,0 A real ± 1% V. of the measured value ± 5 digits / 0,01 A

- Current peaks (> 20A): 50 Hz - 60 Hz / ± 5 % ± 50 digits

-Active power P: 10 W ... 9999 kW in 5 measurement ranges

± 1 % of the value + 20 digits (>20 V y >20 A)
± 2 % of the value + 40 digits (>20 V y >20 A)
0,1 W ... 1 kW according to the measurement range

- Apparent power S: 10 VA ... 9999 kVA in 5 measurement ranges

± 1 % of the value + 20 digits (>20 V y >20 A)
± 2 % of the value + 40 digits (>20 V y >20 A)
0,1 VA ... 1 kVA according to the measurement range

- Reactive power Q: 10 VAr ... 9999 kVAr in 5 measurements ranges

± 1 % of the value + 20 digits (>20 V y >20 A)
± 2 % of the value + 40 digits (>20 V y >20 A)
0,1 VAr ... 1 kVAr according to the measurement range

- PF power factor: 0,000 ... 1,000

± 0,04 (>20 V >20 A) / 0,001
± 0,1 (>20 V >20 A) / 0,001

- Phase angle: -180 ... +180 / ±1 / 0,1
            0 ... +360 / ±1 / 0,1

- Frequency measurement (U > 50 V): 46 ... 65 Hz ±0,3 Hz / 0,1 Hz

- Active energy: 0 ... 999.999 kWh
± 1 % of the value + 20 digits

- Apparent energy: 0 ... 999.999 kVAh ± 1 % of the value + 20 digits

- Reactive energy: 0 ... 999.999 kVarh ± 1 % of the value + 20 digits

- Harmonics in the voltage (relative): 50 - 60 Hz > 80 V AC

1 - 20 th / ± 2 % / 0,1 %
21 - 50 th / ± 4 % of the value ± 2 % / 0,1 %

- Harmonics in the voltage (absolute): 50 - 60 Hz > 80 V AC

1 - 20 th / ± 2 % / 0,1 %
21 - 50 th / ± 4 % of the value ± 0,5 % / 0,1 %

- Harmonics in the current (relative): 50 - 60 Hz > 80 V AC

1 - 20 th / ± 2 % / 0,1 %
21 - 50 th / ± 4 % of the valuew ± 2 % / 0,1 %

- Harmonics in the current (absolute): 50 - 60 Hz > 80 V AC

1 - 20 th / ± 2 % of the value ± 0,4 A / 0,1 A
21 - 50 th / ± 4 % of the value ± 0,4 A / 0,1 A

Total harmonic distortion (THD-F): 50 - 60 Hz > 80 V y > 20 A

0,0 - 20 % / 2 % / 0,1 %
20,1 - 100 % / ± 6 % of the value ± 1 % / 0,1 %
100,1 - 999,9 % / ± 10 % of the value ± 1 % / 0,1 %

Max. clamp opening: 55 mm

Range selection: auto

Overload indication"OL = Overload

Memory: 50.000 readings

Interface: USB

Software and data cable: included in the delivery. They can be used with Win 2000, XP, y ME

Display: graphic LCD display, 128 x 64 with backlight

Power supply: 2x 1,5 V AA batteries

Energy consumption: aprox. 10 mA

Dimensions: 271 x 112 x 46 mm

Weight: 650 g with batteries

Operating conditions: 85 % max. R.H. / -10 ... + 50 °C

Protection / Standards: CAT III 600 V / EN 61010-2-032


Delivery Scope

1 x 1-Phase-Power Meter PCE-GPA 62

2 x Isolated measuring pins with 2 m / 6.6 ft of cable each

2 x Batteries

1 x Carrying case

1 x USB cable for a PC

1 x Software (in English)

1 x User's manual
