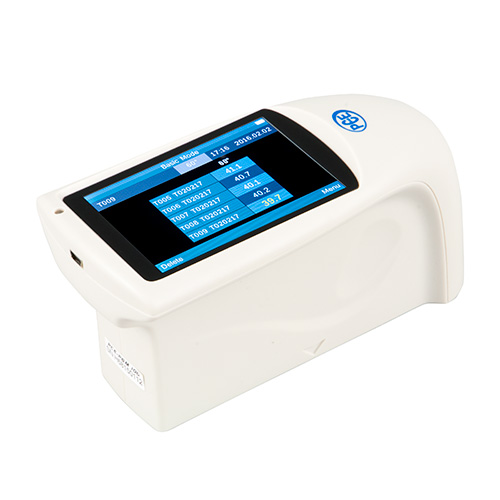

PCE IGM 60 光泽度仪 (0~300 GU)
制造商: PCE Model: IGM 60 来源: China 保障: 12 Month - 联系
Specification
Measurement geometry: 60°
Display: 3.5 in TFT touch display
Standards:
ISO 2813
GB/T 9754
ASTM D 523
ASTM D 2457
Measuring surface: 9 x 15 mm / .4 x .6 in
Measuring range: 0 ... 300 GU
Readability: 0.1 GU
Repeatability: Measuring range 0 ... 10 GU: ±0.1 GU
Measuring range: 10 ... 100 GU: ±0.2 GU
Measuring range: 100 ... 300 GU: ±0.2 GU (%)
Reproducibility:
Measuring range: 0 ... 10 GU: ±0.2 GU
Measuring range: 10 ... 100 GU: ±0.5 GU
Measuring range: 100 ... 300 GU: ±0.5 GU (%)
Chromaticity: Corresponds to CIE 1931 (2°) under a CIE C - light source
Measurement accuracy: ±1.2 / ±1.2 %
Measuring time: 0.5 seconds
Dimensions: 160 x 75 x 90 mm / 6.3 x 3 x 3.4 in
Weight: 350 g / < 1 lb
Menu language: English, Chinese
Power supply: 3200-mAh Li-ion rechargeable battery
Interface: USB / RS-232
Measurement memory:
Basis measurement: 1000
Statistical mode: 5000
Continuous measurement: 5000
Software: Included
Operating temperature: 0 ... 40°C / 32 ... 104°F
Storage temperature: -20 ... 50°C / -4 ... 122°F
Relative humidity: < 85% rel. humidity (non-condensing)
Delivery contents
1 x Gloss Meter PCE-IGM 60
1 x Lithium-Ion-Battery
1 x Evaluation software (on CD-ROM)
1 x USB Cable
1 x Calibration plate
1 x Instruction manual
