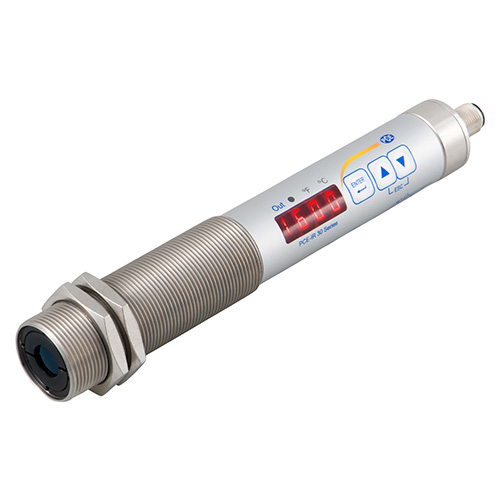

PCE IR 32 红外测温仪 (250°C~1600°C)

Specification

Measuring range: 250 ... 1600°C / 482 ... 2912°F (metals, ceramics, glass melt)

Spectral range: 1 ... 1.7 µm

Focus distance: 1500 mm / 4.9 ft

Measurement spot: @ 1500 mm 10 mm / .03 in

Analog output: 0/4 ... 2- mA (scalable)

Load: 500 Ω

Current output resolution: 0.2 K + 0.03%

Display: LED

Resolution Display: 1

Response time: t98 < 2 ms

Repeatability: 1 K

Uncertainty: 0.3% from the measurement + 2.5 K

Switching output: OC 24V / 150-mA

Power supply: 24V DC

Environmental Electronics: 0 ... 65°C / 32 ... 149°F, max. 95% r.h.

Weight: 400 g / < 1 lb

Dimensions Electronics: M30 x 185 mm (without plug)


Delivery contents

1 x Infrared thermometer PCE-IR 32

1 x User manual
