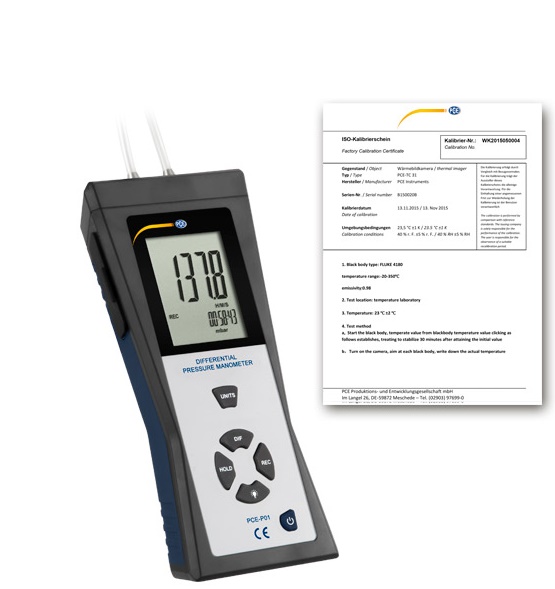

PCE P01-ICA 数字压力表

- Measuring range (±):

inH2O: 55.40

psi: 2.000

mbar: 137.8

kPa: 13.79

inHg: 4.072

mmHg: 103.4

ozin²: 32.00

ftH2O: 4.612

cmH2O: 140.6

kgcm²: 0.140

bar: 0.137

- Resolution:

inH2O: 0.01

psi: 0.001

mbar: 0.1

kPa: 0.01

inHg: 0.001

mmHg: 0.1

ozin²: 0.01

ftH2O: 0.001

cmH2O: 0.1

kgcm²: 0.001

bar: 0.001

Accuracy (at 25°C / 77°F): ± 0.3%

Linearity: ± 0.2%

Response time: Approx. 0.5 sec.

Max. pressure: 689 mbar

Operating temperature: 0 ... 50°C / 32 ... 122°F

Storage temperature: -10 ... 60°C / 14 ... 140°F

Media: Air and non-explosive gases

Real-time data-logging interval: 1 sec. to 24 h adjustable

Display: Dual LCD

Dimensions: 210 x 75 x 50 mm / 8.27 x 2.95 x 1.97 in (H x W x D)

Weight (without batteries): 650 g / 1.44 lbs

Power supply: Battery: 1 x 9V block

AC adapter: 9V DC / 500-mA

Delivery scope:

1 x PCE-P01 differential pressure manometer

4 x 30 cm / 11.81 in silicon tubes

1 x CD-ROM with PC software

1 x USB cable

1 x 9V block battery

1 x 9V DC / 500-mA power adapter

1 x Plastic carrying case

1 x User manual

1 x ISO calibration certificate
