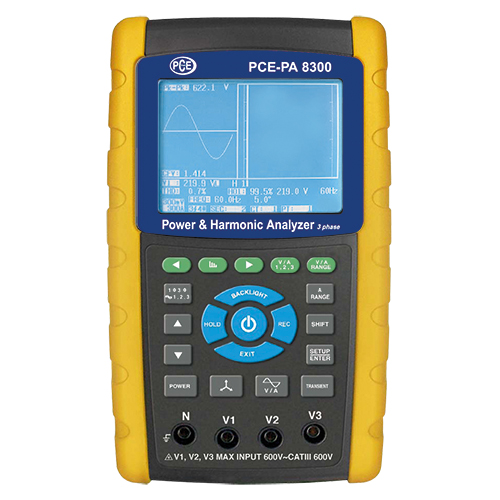

PCE-PA 8300 功率分析仪

Manufacturer: PCE-UK

Model: PCE-PA 8300

Warranty: 12 months

General specifications

Electrical specifications

Voltage Measurement (AC V)

Measurement Range; Resolution; Accuracy

10 V ... 600 V (phase to neutral); 0.1 V; ±(0.5 % + 0.5 V)

10 V ... 600 V (phase to phase; 0.1 V; ±(0.5 % + 0.5 V)

Current Measurement (AC A) Set 1

Measurement Range; Resolution; Accuracy

20 A; 0.001 A (< 10 A); 0.01 A (≥ 10 A) ± (0.5 % + 0.1 A)

200 A; 0.01 A (< 100 A) ;0.1 A (≥ 100 A) ± (0.5 % + 0.5 A)

1200 A; 0.1 A (< 1000 A);1 A (≥ 1000 A) ± (0.5 A + 5 A)

Current measurement (AC A) Set 2

Measurement range; Resolution; Accuracy

30 A; 0.001 A (< 10 A) 0.01 A (≥ 10 A); ±(0.5 % + 0.1 A)

300 A; 0.01 A (< 10 A) 0.1 A (≥ 10 A); ±(0.5 % + 0.5 A)

3000 A; 0.1 A (< 1000 A) 1 A (≥ 1000 A); ±(0.5 A + 5 A)

Effective power

Measurement range; Resolution; Accuracy

0 KW ... 9.999 KW; 0.001 KW; ±(1 % + 0.008 KW)

10 KW ... 99.99 KW; 0.01 KW; ±(1 % + 0.08 KW)

100 KW ... 999.9 KW; 0.1 KW; ±(1 % + 0.8 KW)

1 MW ... 9.999 MW; 0.001 MW; ±(1 % + 0.008 MW)

Apparent Power

Measurement range; Resolution; Accuracy

0 KVA ... 9.999 KVA; 0.001 KVA; ±(1 % + 0.008 KVA)

10 KVA ... 99.99 KVA; 0.01 KVA; ±(1 % + 0.08 KVA)

100 KVA ... 999.9 KVA; 0.1 KVA; ±(1 % + 0.8 KVA)

1 MVA ... 9.999 MVA; 0.001 MVA; ±(1 % + 0.008 MVA)

Reactive Power

Measurement range; Resolution; Accuracy

0 KVAR ... 9.999 KVAR; 0.001 KVAR; ±(1 % + 0.008 KVAR)

10 KVAR ... 99.99 KVAR; 0.01 KVAR; ±(1 % + 0.08 KVAR)

100 KVAR ... 999.9 KVAR; 0.1 KVAR; ±(1 % + 0.8 KVAR)

1 MVAR ... 9.999 MVAR; 0.001 MVAR; ±(1 % + 0.008 MVAR)

Active Energy

Measurement range; Resolution; Accuracy

0 KWH ... 9.999 KWH; 0.001 KWh; ±(2 % + 0.008 KWh)

10.00 KWH ... 99.99 KWH; 0.01 KWh; ±(2 % + 0.08 KWh)

100.0 KWH ... 999.9 KWH; 0.01 KWh; ±(2 % + 0.8 KWh)

1 MWH ... 9.999 MWH; 0.001 MMh; ±(2 % + 0.008 MWh)

Apparent Energy

Measurement range; Resolution; Accuracy

0 KVARH ... 9.999 KVARH; 0.001 KVARh; ± (2 % + 0.008 KVARh)

10.00 KVARH ... 99.99 KVARH; 0.01 KVARh; ± (2 % + 0.08 KVARh)

100.0 KVARH ... 999.9 KVARH; 0.01 KVARh; ± (2 % + 0.8 KVARh)

Power Factor

Measurement range; Resolution; Accuracy

0 ... 1; 0.01; ± 0.04

Delay Angle

Measurement range; Resolution; Accuracy

-180° ... +180°; 0.1°; ±1°

Frequency

Measurement range; Resolution; Accuracy

45 Hz ... 65 Hz; 0.1 Hz; ± 0.1 Hz

Harmonic of AC Voltage at 50 / 60 Hz

Measurement range; Resolution; Accuracy

1 ... 20th order; 0.001 ... 1 A; 0.1 % ± (2 % + 0.5 A)

± (2 % + 10 Digit)

21 ... 30th order; 0.001 ... 1 A; 0.1 % ± (2 % + 0.5 A)

± (2 % + 10 Digit)

21 ... 50th order; 0.001 ... 1 A; 0.1 % not specified

Display: 3.7 in / 94.0 mm point-matrix LCD (320 * 240 pixel) with LED background lights

Safety standards: IEC1010CAT III 600V

Input resistance AC V: 10 MOhm

Operating frequency of current clamp: 40 Hz ... 1 kHz

Tested operating frequency of current clamp: 45 Hz ... 65 Hz

Overload protection: AC V; AC A; 720 V RMS

; 1300 A with current clamp

Data Storage: SD memory card

Recording interval: 1 second

Data logging function: logging with real-time speed on SD memory card

Filing interval: 2 ... 7200 seconds

Data output (only for live display on computer): per USB or RS232, depending on connection cable

Operating temperature: 0° C ... +50° C / 32° F ... 122° F

Surrounding humidity: < 80 % RH

8 x 1.5 V AA batteries

Voltage Supply: 9 V adapter

Current Drain: Measurement Device: 300 mA DC

current clamp: 34 mA DC

Maximum Wire Diameter: 50 mm / 1.9 in

Weight Measurement Device: 948 g / 33.4 oz (incl. battery)

Current clamp: 467 g / 16.4 oz (incl. cable)

Dimensions Device: 225 mm x 125 mm x 64 mm / 8.8 in x 4.9 in x 2.5 in

Current clamp: 210 mm x 64 mm x 33 mm / 8.2 in x 2.5 in x 1.2 in

Clamp jaw: 86 mm / 3.3 in (exterior)

Dilivery Contents:

1 x PCE-PA 8300 3-Phase Power Meter

3 x Current clamps (Set 1) or 3 x flexible Rogowski coils (Set 2)

4 x Insulated alligator clips

4 x Safety test lines

6 x 1.5 V AA batteries

1 x 9 V mains adapter

1 x SD memory card

1 x Carrying case

1 x User manual
