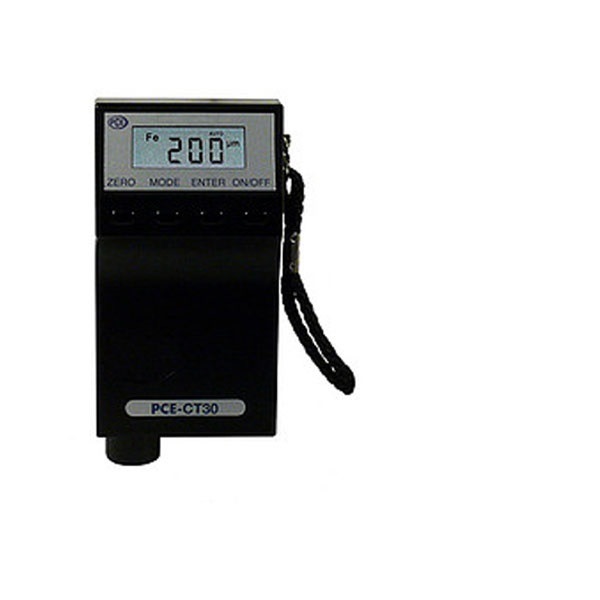

PCE-CT 30 厚度计

Manufacturer: PCE UK
Warranty: 12 months

Measurement range



0 to 3500 µm respectively
0 to 140 mils (selectable)

Measurement values from 0.0 to 999 µm
from 1.00 to 3.50mm
Meter ferrous and non-ferrous surfaces
Resolution 0.1 µm in the range 0.0 to 99.9 µm
1 µm in the range 100 to 999 µm
0.01 mm in the range 1.00 to 3.50 mm
respectively
0.01 mils in the range 0.00 to 9.99 mils
0.1 mils in the range 10.0 to 99.0 mils
1.0 in the range 100 to 140 mils
Accuracy of repeat measurements ±(1µm +2%) of 0 to 999 µm
±3.5% of 1001 to 3500 µm
Minimum area of measurement 10 x 10mm
Minimal radial curvature convexed: 5 mm; concaved: 30mm
Minimum base material thickness type F: 0.2mm
type N: 0.05mm
Display LCD with 4 digits
Operating temperature 0 to 60°C
Power 9V battery (included)
Dimensions 118 x 58 x 38mm
Weight 150g with battery


 Delivery contents

1 x PCE-CT 30 Thickness Meter

1 x set of calibration standards

1 x carrying case

1 x 9 V battery

1 x user manual
