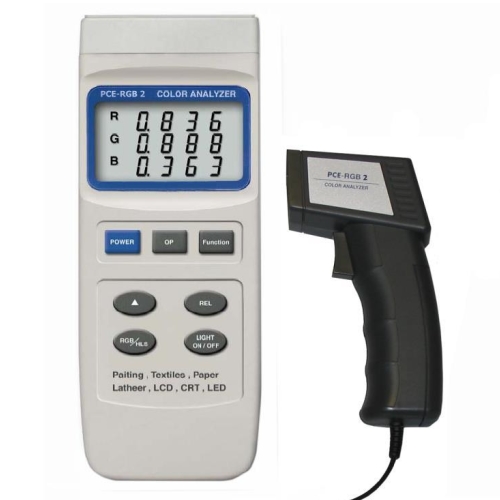

PCE RGB2 便携式比色计

Specifications

Angle / geometry: 45° / 0° (for 45° measurement according to DIN 5033)

Range: RGB: 0 to 1023 for R, G and B ; HSL: 0 to 1.000 for H, S and L

Resolution: 1 for RGB measurement / 0.001 for HSL measurement

Repeatability: < 3 RGB, for a minimum of 1 measurement

Color spaces: RGB and HSL

Spectral range: 400 ... 700 nm

Light source: 2 white diodes

Surfaces: Non-luminous (absolute values); Luminous (relative values for comparison)

Aperture: 16 mm / ≈ 0.63" diameter

Interface: RS-232 port, data transfer requires optional software and cable

Power: 9 V battery

Dimensions (sensor): Approx. 45 x 92 x 160 mm / 1.7 x 3.6 x 6.2"

Weight: Approx. 600 g / 1.33 lb

Operating conditions: 0 ... 50 °C / 32 ... 122 °F, < 80 % RH



Dilivery Contents

1 x PCE-RGB2 color meter

1 x color-measuring probe with 1.5 m / 4.9' long cable

1 x white calibration standard

1 x user manual

1 x carrying case

Detail

Manual
