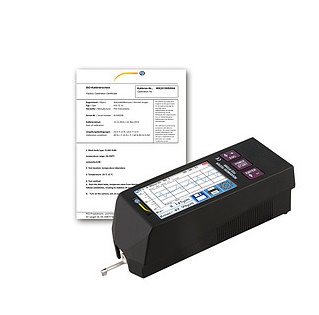

PCE RT 2300-ICA 便携式表面粗糙度仪带有探针外部包括ISO校验证书

  • 制造商: PCE
    Model: RT 2300-ICA
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Measuring range: Rz: 0.02 μm ... 320 μm; Ra, Rq: 0.005 μm ... 32 μm

Accuracy: ± 10%

Repeatability: ± 7%

Resolution:

± 20 μm: 0.01 μm

± 40 μm: 0.02 μm

± 80 μm: 0.04 μm

Measurement Parameters: Ra, Rz, Rq, Rt, Rc, Rp, Rv, R3z, R3y, Rz (JIS), Ry, Rs, Rsk, Rku, Rmax, Rsm, Rmr, RPc, Rk, Rpk, Rvk, Mr1, Mr2

Measurement Standards: ISO4287, ANSI b46.1, DIN4768, JISb601

Graphic:

Primary profile (roughness + waviness)

Roughness profile (roughness)

Loading curves

Measuring filter: RC, PC-RC, Gaus, DP

Measuring section (Cut Off):0.25 mm, 0.8 mm, 2.5 mm

Measuring length:

1 ... 5* measuring path

Max. 17.5 mm (including pre- and post-run)

Sensor:

Diamond probe tip 90°

5 μm

Contact force sensor: <4 mN

Feed rate :

0.25 mm: 0.135 mm / s

0.8 mm: 0.5 mm / s

2.5 mm: 1 mm / s

Display: 3.5" LCD screen

Power supply:

3.7V Li-Ion Battery

5V / 800-mA USB Power Adapter

Operating time: 50 h

Operating conditions: -20 ... 40°C / -4 ... 104°F, max. 90% rh

Storage conditions: -40 ... 60°C / -40 ... 140°F, max. 90% rh

Dimensions:

Main unit: 158 x 55 x 52 mm / 6.2 x 2.2 x 2 in

Motor unit: 115 x 23 x 27 mm / 4.5 x 1 x 1.1 in

Weight: About 500 g / 1.1 lbs

Delivery Scope:

1 x Roughness tester PCE-RT 2300

1 x Microprobe

1 x Removable motorized sensor

2 x Connection cable for motor unit

1 x Charger

1 x Interface cable

1 x Transport case

1 x Manual

1 x ISO calibration certificate
