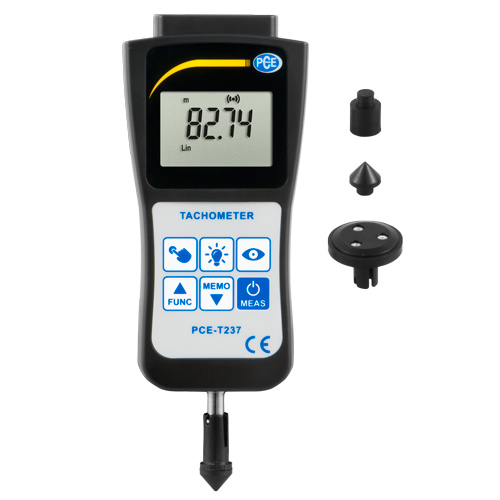

PCE T237 手持式转速表 (0.5~99999 rpm)

Specification

Measuring ranges:

5 ... 99999 rpm (optical speed measurement)

0.5 ... 19999 rpm (contact measurement)

0.05 ... 1999 m/min (contact measurement)

0.2 ... 6560 ft/min (contact measurement)

Meter counter: 0.1 ... 199,999 m

Frequency: 0.4 ... 1666.65 HZ

Period measurement: 360 ... 19,999

Rotor speed: 2 ... 9 rotor blades

Resolution: 0.5 ... 999.9 = 0.1 rpm;

up to 99999 = 1.0 rpm (optical speed measurement)

0.5 ... 999.9 = 0.1 rpm;

up to 19,999 = 1.0 rpm (contact measurement)

0.05 ... 99.99 = 0.01 m/min;

up to 1999 = 0.1 m/min (contact measurement)

0.2 ... 999.9 = 0.1 ft/min;

up to 6560 = 1 ft/min (contact measurement)

Meter counter: 0.1 ... 999 = 0.1 m; < 199.999 = 1 m

Accuracy: < 60000 rpm: ± 0.05% v. Mw. > 60000 rpm: ± 0.15% v. Mw.

< 60000 rpm: ± 0.05% v. Mw.

> 60000 rpm: ± 0.15% v. Mw.

Measuring distance: 300 mm

Memory: last value, Min / Max

Spannungsversorgung: 4 x 1.5V AA batteries (Mignon)

Working temperature range: 0 ... 50°C / 32 ... 122°F

Housing: ABS plastic

Speed display: LCD display, 5-digit, turns automatically, depending on the type of speed measurement

Dimensions: 65 x 215 x 38 mm / 2.6 x 8.5 x 1.5 in

Weight: 300 g / < 1 lb

Delivery contents

1 x Handheld Tachometer PCE-T237

1 x Conical adapter

1 x Measuring wheel adapter

1 x Surface wheel

1 x Reflective tape (60 mm)

1 x Carrying case

1 x Operating instructions
