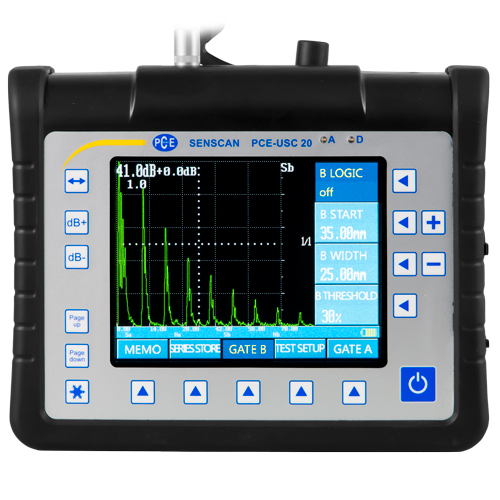

PCE USC 20 状态监测超声波测厚仪 (0.5~9999 mm)

Specifications

Measurement range: 0.5 ... 9999 mm (longitudinal shaft steel), continuously adjustable

Sound velocity: 1000 ... 15000 m/s, continuously adjustable, coarse adjustment

Display delay: -10 ... 2000 mm

Probe delay: 0.00 ... 199.9 µs

Transmitting impulse: 400 V negative signal peaks

Damping (impulse generator): 50 / 100 / 200 / 500

Work mode: One- or two-probe measurement

Operating frequency range: 0.5 ... 20 MHz

Pulse repetition frequency: 40 / 250 /1000 Hz optional

Amplification / gain (receiver): 0 ... 110 dB

Rectification (receiver): Whole wave, positive half wave, negative half wave, high frequency representation

Alarm limits: Limit A (Gate A) and Limit B (Gate B),

Adjustable as positive or negative peak with automatic (visual or audible) alarm

Measurement mode: Limit value  / Extreme value mode

Measurement deviation horizontal linearity: ≤0.1 %

Measurement deviation vertical linearity: ≤3 %

Excess sensitivity: ≥62 dB

Dynamic range: ≥40 dB

Resolution remote field: ≥30 dB

Sampling rate: 400 MHz

Measurement data storage: 500 records

Signal reproduction: Permanent recording of signals with the playback of dynamic echoes

Surface adjustment: Automatic adjustment of the error position of the angled probes

Automatic amplification: 20 ... 80 %, in 1 % steps

Menu language: English, Chinese

Interface: USB-A, USB-B, Ethernet

Display: 5.7 " TFT color LCD (640 x 480 pixels)

Operating temperature: -10 ... +50 °C

Power supply: AC: 100 ... 240 V

DC: 15 V / 4 A

Battery Li-ion battery: (10.8 V, 5200 mAh)

Battery opearting time per charge: >6 hours

Protection class: IP54

Weight: 1.4 kg (incl. battery)



Dilivery Contents

1 x PCE-USC 20 condition monitoring ultrasonic thickness gauge

1 x Li-ion battery

1 x charging adapter

2 x probe cables (1.8 m long)

1 x USB cable

1 x USB flash drive with software

1 x carrying bag with strap

1 x carrying case

1 x contact transducer probe (90 °)

1 x contact transducer probe (70 °)

1 x contact transducer probe (60 °)

1 x contact transducer probe (45 °)

1 x calibration certificate

1 x user manual
