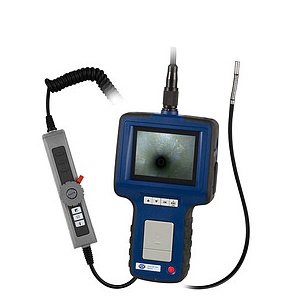

PCE VE 350HR 内窥镜

Cable diameter: 6.0 mm / 0.24 in.

Cable length: 1 m / 3.28 ft

Depth of field: 1.5 … 10 cm / 0.59 ... 3.94 in.

Field of view: 67°

Bending radius 90 mm / 3.54 in.

Illumination 6 LEDs (4 front, 2 side), automatic

Boost function For improved image quality in the dark

Image sensor CMOS

Picture rate 30 frames per second (fps)

Display

88.9 mm / 3.5 in. TFT LCD monitor

Interface Mini USB 1.1 / AV out

Storage options Image or video

Storage 8 GB memory card (can be increased to 32 GB)

Compression format MPEG 4

Picture format JPEG (640 x 480 pixel resolution)

Video output format NTSC / PAL

Video format ASF (320 x 240)

Operation and storage temperature -10 ... +50 °C / +14 ... +122 °F

Voltage supply Rechargeable 3.7 V lithium-ion battery

Dimensions, handheld device 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in.

Weight, incl. carrying case 450 g / 1 lb

Protection type, camera IP 67 = Dust tight, no ingress of dust, complete protection against contact. Protected against liquid immersion up to 1 m / 3.28 ft, ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of press and time (up to 1 m / 3.28 ft of submersion).


Delivery Scope


1 x Videoscope PCE-VE 350HR

1 x 8GB SD memory card

1 x USB cable

1 x Mains power adapter

1 x Carrying case

1 x  User manual
