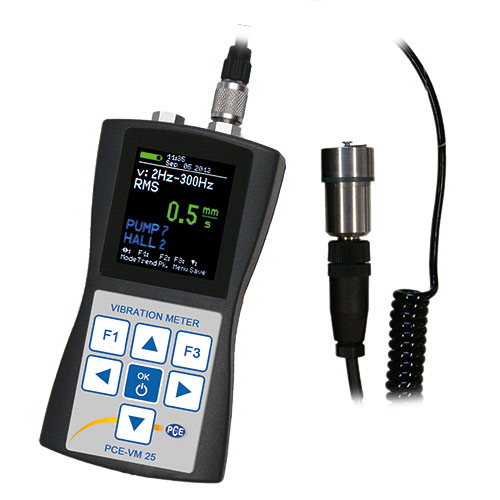

PCE VM 25 振动计 (0.1~240 m/s²)

Specification

Vibration acceleration:

0.1 ... 240 m/s², 0.2 Hz ... 10 kHz,

3 Hz ... 1 kHz, 1 kHz ... 10 kHz

Vibration velocity:

0.1 ... 1000 mm/s,

2 ... 300 Hz, 10 ... 1000 Hz

Vibration displacement: 0.01 ... 60 mm, 2 ... 300 Hz

Diagnosis Parameter K(t) for roller bearing: 1 ... 10 kHz, with data storage for 1600 initiation values (eff. / peak)

Effective Value Measurement: Yes

Peak Value measurement: Yes

Crest Factor Measurement: Yes

Measurement Accuracy (oscillation): ±5%, ±2 digits

Revolution Measurement: 1 ... 9999 rpm, optical

Temperature Measurement: -40 ... +125 °C / -40 ... 257 °F ±2 K, infrared

Frequency Analysis: 125 lines FFT;

Acceleration / Speed

7 frequency ranges: 2 to 11712 Hz

Output for headphones: 3.5mm via adapter VM2xHP,

volume adjustable

Interface: USB

Data storage for measured value: 16000 values, opt. computer software to administer measured data and measurement slots

Display: OLED Graphic Display; Colored; 128 x 160 pixels

Voltage Supply: 3 x LR03 / HR03 / AAA batteries or NiMH batteries, operation time 8 ... 12h

Operation Temperature: -20 ... +60 °C, <95 % air humidity without condensing

Dimensions: 125 mm x 65 mm x 27 mm / 4.9 in x 2.6 in x 1.1 in

Weight: 140g / 0.3 lbs with batteries, without sensors

Output: Low Power IEPE

Piezo System: Shear Principle

Nominal Sensitivity: 3.5mV/ms-2

Sensitivity for Irrelevant Parameters: <5%

Dimensions: Ø 21 mm / 0.8 in, height 34 mm / 1.3 in (without socket)

Weight: 53g / 1.8oz

Operation Temperature: -20 ... +80 °C / -4 ... 176 °F

Sensor Cable: Spiral Cable, Stretched length approx. 1.6 m / 5.2 ft, Ø 4 mm / 0.15 in

VMID recognition of measuring slot: digital, one-time 16-digit hexa decimal number, read-out via sensor foot, enclosure of stainless steel Ø 25 mm, height 15 mm, 45 g, montage: two-components epoxy adhesive

Delivery contents

1 x PCE-VM 25 Vibration Meter

1 x Vibration Meter Sensor with Spiral Cable

1 x VMID Measurement Location

1 x USB cable

1 x Head Phone Adapter

1 x Calibration Certificate

1 x Instruction Manual

1 x Plastic case
