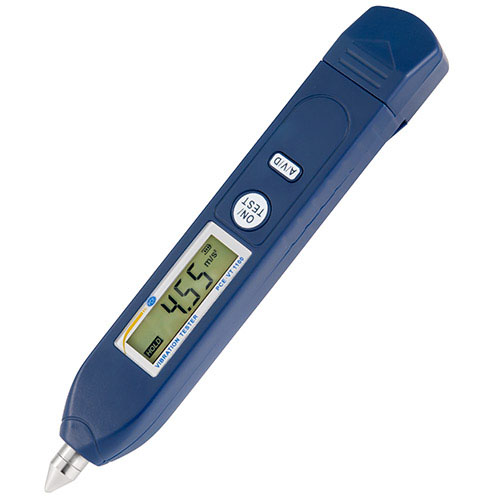

PCE VT 1100 振动计

Specification

Range of Acceleration: 0.01 m/s² ... 199.9 m/s² peak

Range of Measurement speed: 0.01 mm/s ... 199.9 mm/s rms; 4 x 10-4 in/s ... 7.9 in/s

Range of Measurement displacement: 0.001 mm ... 1.999 mm p-p; 4 x 10-5 in ... 0.08 in

Accuracy: ±5%, ±2 Digits (20 Hz ... 1 KHz); ±10%, ±2 Digits (10 Hz ... 20 Hz)

Frequency Range - Acceleration: 10 Hz ... 1 kHz

Frequency Range - Speed 10 Hz: ... 1 kHz

Frequency Range - Displacement: 10 Hz ... 500 Hz

Display: 3.5 positions LCD display that shows the last measurement value

Power supply: CR2032 Lithium Battery 3V

Auto Shut-off: Automatically disconnects after 2 minutes without activity

Operational Temperature Range: 0 ... 40°C / 32 ... 104°F; < 85% H. r.

Dimensions: 150 mm x 22 mm x 15 mm /5.9 in x 0.8 in x 0.6 in

Weight: 0.055 kg / < 1 lb



Dilivery Contents

1 x PCE-VT 1100

1 x Carrying case

2 x Batteries

1 x User’s manual
