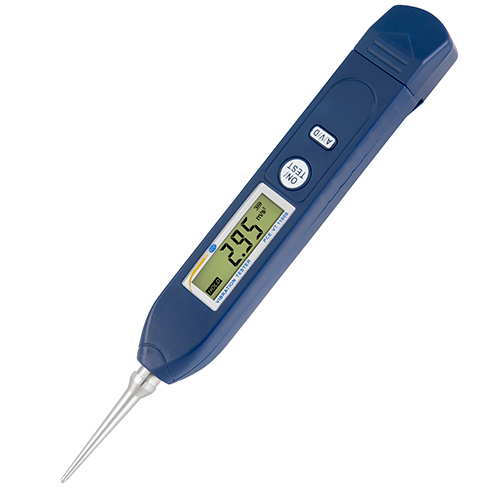

PCE VT 1100S 振动计

Specification

Parameter: Measuring Range; Frequency Range

Acceleration: 0.01 ... 199.9 m/s² peak; 10 Hz ... 1 kHz

Vibration speed: 0.01 ... 199.9 mm/s rms; 10 Hz ... 1 kHz

Displacement: 0.001 ... 1.999 mm p-p; 10 ... 500 Hz

Measurement accuracy:

Acceleration: ≤ 3 %

Vibration speed: ±5 %, ±2 Digits

Displacement: +10/-20 % (10...20 Hz); ±5 % (20...1000 HZ)

Display: LCD, Response time approx. 1 second

Power supply: 2 x 6 V CR2032 button cell

Battery life: about 5 hours (in continuous operation)

Environmental conditions: 0 ... +40 °C / 32 ... 104°F, 0 ... 84 % r.H.

Dimensions: 155 x 24 x 18.7 mm / 6.1 x 0.9 x 0.7"

Weight: ca. 40 g (incl. batteries) / 1.4 oz

Dilivery Contents

1 x Accelerometer PCE-VT 1100S

1 x PCE-VT-NF-45 needle probe (length 45mm / 1.77")

2 x Batteries

1 x Carrying case

1 x Storage box

1 x User manual
