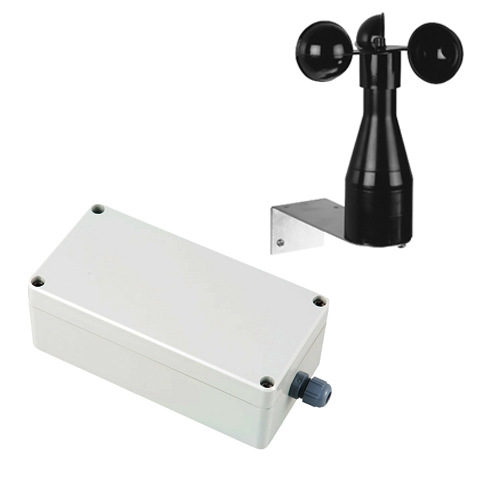

PCE WL 1 风速仪

Specifications

Storage unit

Inputs: 2 x digital inputs; 1 x analogue input; 1 x NTC input for external temperature sensors

Interface: RS-232

Sampling interval: 1 min or 10 min

Memory: microSD card (FAT32), max. 2 GB

Data format: CSV file, ASCII format

Recorded parameters: average values, min/max values and standard deviations (with date and time stamp)

Power supply: 2 x 1.5 V type C batteries

Battery life: up to 1 year (with 1 min sampling interval); up to 3 years (with 10 min sampling interval)

Housing :robust plastic housing

Protection class: IP65

Dimensions: 160 x 80 x 55 mm

Weight: 450 g

Wind sensor

Output: 0 ... 100 Hz at 40 m/s

Measuring range: 0.8 ... 40 m/s

Accuracy: ± 0.5 m/s or ± 5 % of measurement value

Max. load: max. 60 m/s (short-term)

Contact classification: 10 VA, max. 42 V DC, max. 0.4 A

Mounting: with support bracket

Heating: max. 24 V DC/AC, max. 1 A

Environmental temperature: -25 ... +60 °C (ice-free)

Cable: 3 m; LiYY 4 x 0.5 mm²

Protection class: IP54

Dimensions: Ø134 x 160 mm

Weight: ca. 300 g


Delivery contents

1 x air velocity meter PCE-WL 1

1 x wind sensor

1 x 512 MB microSD card

1 x mounting bracket

2 x 1.5 V type C batteries

1 x instruction manual

Detail

Manual
