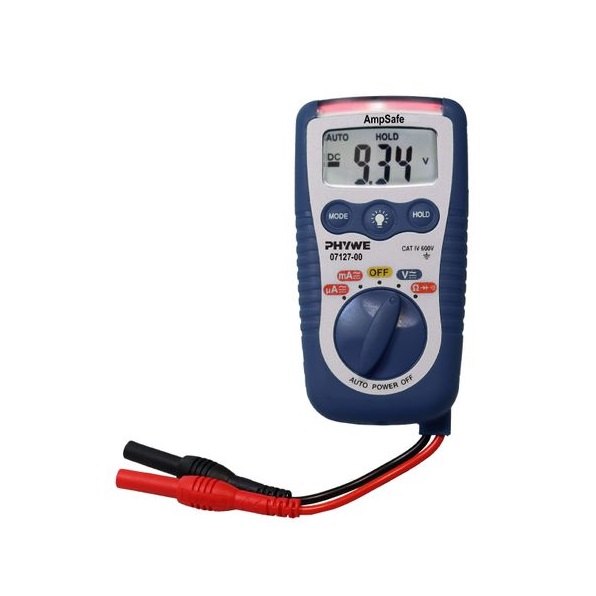

PHYWE 07127-00 Digital student multimeter (600VAC/DC, 200mA AC/DC, 20 MΩ)

Function and Applications

- Multimeter for measurement of AC/DC voltage, current and resistance.

Benefits

- Virtually indestructible due to electronic overload protection (electronic relay) - never replace a fuse again!

- Use your 4 mm standard cords, no adapter required

- Includes a pair of test probes

- Measures AC/DC voltages, current and resistance

- Ergonomically designed for student use

- Safe, with integrated shock-absorbing frame

- Contactless AC voltage detection via indicator light

- Continuity tester

- Auto Power-off

- Built-in flashlight (LED)

Equipment and Technical Data

- Measurement ranges:

      DC voltage: 0...600 V

      AC voltage: 0...600 V

      DC current: 0...200 mA

      AC current: 0...200 mA

      Resistance: 0...20 MOhm

Supply voltage:2 × 1,5 V AAA batteries

Dimensions H × W × D (mm): 120 × 55 × 40

Mass: 160 g

4 mm safety sockets- 12 mm

3 1/2-digit LCD

Maximum display value: 2000, Autorange

Data-hold function

Compliant to safety rules: IEC-1010-1, CAT III 600 V

Accessories included:

      2 × batteries AAA

      1 pair test probes

      manual

Details

Manual
