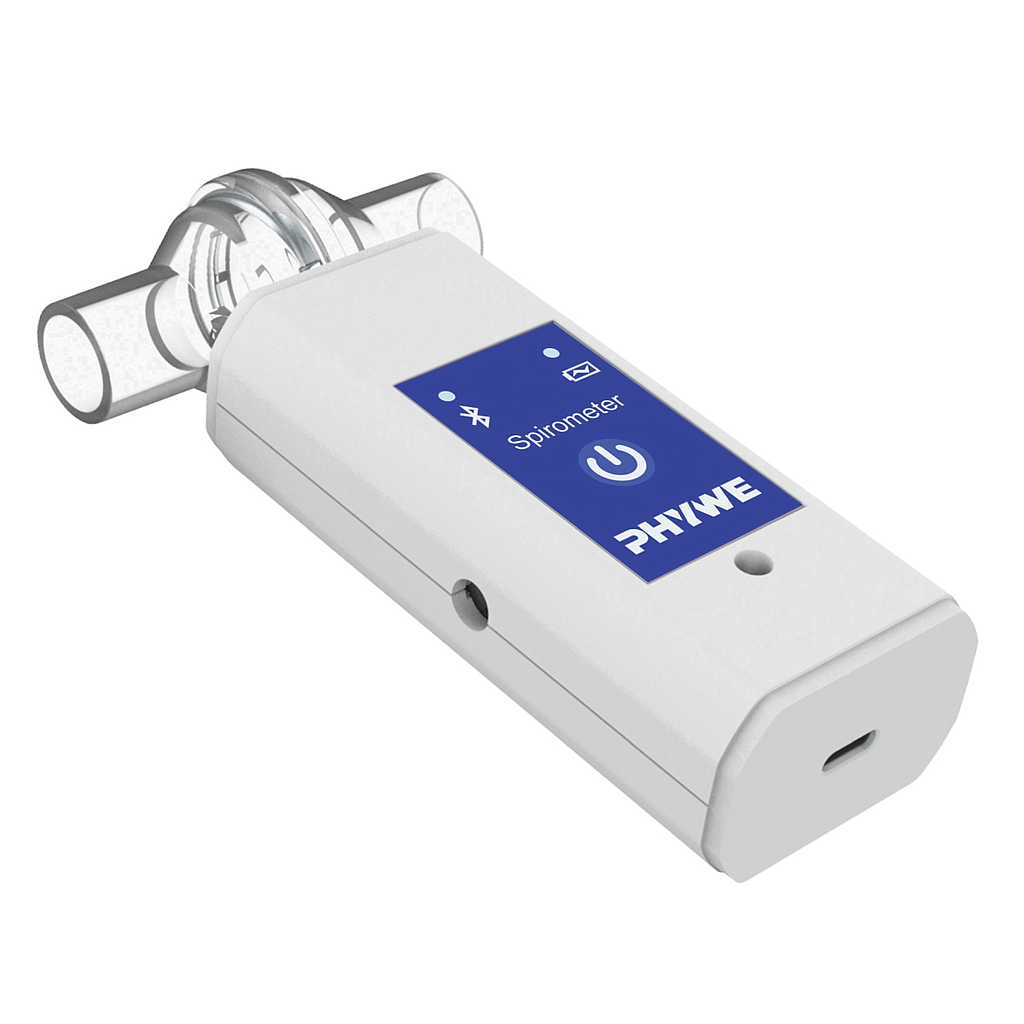

PHYWE 12936-01 Cobra SMARTsense - 肺活量计 (± 10 l/s)

Function and Applications

Cobra SMARTsense is the ideal solution for inexpensive digitalization of science teaching. The sensors connect wirelessly (Bluetooth) or wired (USB) directly to the student's digital end device (smartphone, tablet or desktop PC). Using the free and award-winning measureAPP measurement software for iOS, Android and Windows, measured values can be easily recorded and graphically displayed. If more evaluations are needed, the measureLAB measurement software for Windows and macOS can be used.

Use this sensor to measure the exhaled or inhaled volume, and in this way investigate the process of oxygen uptake into the body in humans.


Simplicity - Get started right away with the Bluetooth-enabled end device and the free measureAPP

Completeness - Over 40 sensors with more than 70 measured quantities for all subjects

Endurance - Intelligent and efficient power management for up to 50 hours on one battery charge

Variety - The free measureAPP provides perfect support and runs on all mobile platforms and end devices. For professionals, measureLAB is available.

Performance - Up to 32,000 measured values per second guarantee precision and recordings with up to 17 measuring channels simulaneously are possible.

Connectivity - Fast connection of sensors and data exchange via Bluetooth - for many sensors additionally possible via USB.

Equipment and Technical Data

Flow rate:

Range: ±10 l/s

Resolution:0.01 l/s


Range: ±15 l

Resolution: 0.01 l

Samplerate: 200 Hz

Including 1 mouthpiece.

The sensor contains a USB-C rechargeable lithium polymer battery.
