PHYWE 15283-88 教育直线动力学试验设备套,具有定时器2-1 (grades 7-10)

- Function and Applications:

Equipment set allowing the performance of 6 experiments about the following topics:

  • Uniform and non-uniform motion (1 experiments)

  • Laws of motion (1 Experiments)

  • Newtons laws (2 Experiments)

  • Conversion of energy (1 Experiments)

  • Free fall (1 Experiment)

For four additional experiments, the optional accessories (13453-88) is needed (includes i.a. a motor driven car).

- Benefits:

  • Complete equipment set: simple execution of the experiments

  • The equipment is stored in a rugged, stackable and compact box, allowing quick control of completeness (foam insert)

  • Experimenting literature for pupils and teachers available: minimal preparation time

  • Matched with international curriculum: all topics are covered

  • With this set it is possible to perform student experiments to the subject "Linear motion" in a modern and extremely accurate way

- -Equipment and Technical Data:

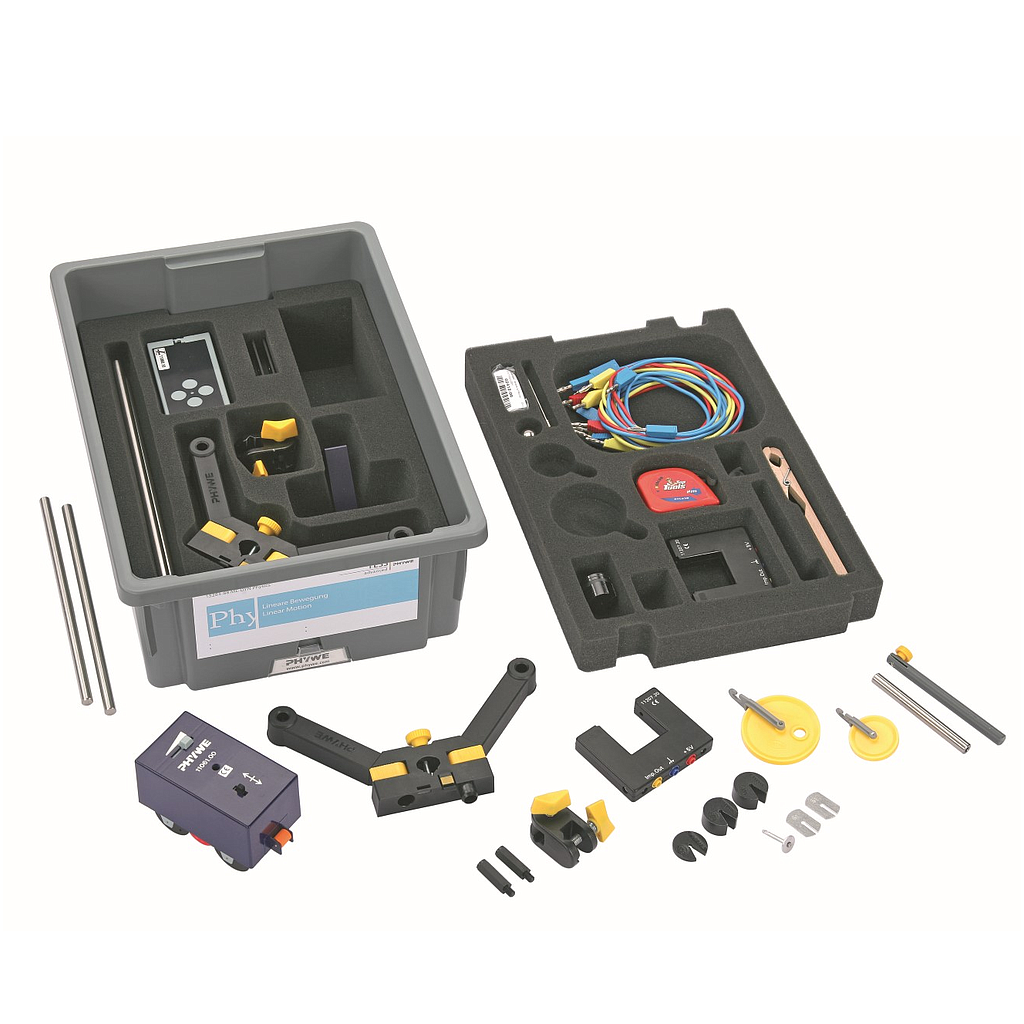

  • The equipment set consists of all the necessary components for the experiments, including the digital counter timer 2-1 and two light barriers

  • Robust, stackable storage box with a foam insert fitting to the contained equipment

- Scope of delivery:

  • Support base, variable 02001-00, 1

  • Support rod, stainless steel, different lenghts | Length: 250 mm 02031-00, 1

  • Support rod with hole, stainless steel, 10 cm 02036-01, 1

  • Boss head 02043-00, 2

  • Slotted weight, silver bronze, 10 g 02205-03, 4

  • Slotted weight, silver bronze, 50 g 02206-03, 3

  • Pulley,movable,dia.65mm,w.hook 02262-00, 1

  • Rod for pulley 02263-00, 1

  • Weight holder, silver bronze, 1 g 02407-00, 1

  • Silk thread, l = 200 m 02412-00, 1

  • Steel ball, d = 19 mm 02502-01, 1

  • Ball release unit 02505-00, 1

  • Slotted weight, blank, 1 g 03916-00, 4

  • Holding pin 03949-00, 1

  • Pulley,movable,dia.40mm,w.hook 03970-00, 1

  • Connecting cord, 32 A, 500 mm, red | Length: 1000 mm 07363-01, 2

  • Connecting cord, 32 A, 2000 mm, yellow | Length: 1000 mm 07363-02, 2

  • Connecting cord, 32 A, 500 mm, blue | Length: 1000 mm 07363-04, 2

  • Measuring tape, l = 2 m 09936-00, 1

  • Cart for measurements and experiments 11060-00, 1

  • Shutter plate for cart 11060-10, 1

  • Barreira (sensor) de luz 11207-23, 2

  • Adapter plate for Light barrier compact 11207-22, 2

  • Track, l 900 mm 11606-00, 1

  • PHYWE Timer 2-1 13607-99, 1

  • TESS box, plastics, high, 305 x 425 x 150 mm 15200-00, 1

  • Lid for TESS box, plastic 15205-00, 1

- Recommended accessories:

  • Handbuch Schülerversuche Mechanik 6, mit dem Timer 2-1, TESS advanced Physik 01159-11

  • TESS advanced Mechanics linar motion optional accessories for 1 group 13453-88
