PHYWE 15510-88 DEMO 高级物理与力学1试验设备套 (grade 5-7 , grades 7-10)

- Function and Applications:

Equipment set allowing the performance of 24 experiments about the following topics:

  • Forces (10 experiments)

  • Simple Machines (9 experiments)

  • Oscillation (3 experiments)

  • Mechanical Forms of Energy (1 experiment)

  • Mechanics of Liquids and Gases (1 experiment)

- Benefits:

  • Demonstrative measurement of forces with large circular dynamometers with a fixing magnet and ball-bearing pulley with two cord grooves for two measuring ranges

  • The experiments can be modified in next to no time

  • Magneto-adhesive angular disc and measuring scale facilitate the measurements

  • Coloured arrows enhancing observations and explanations

  • Easy teaching by using the demo board for demonstration

  • Magneto-adhesive components ensure easy handling and freedom of positioning

  • Secure fastening using magnets with an adhesive force of at least 10 N

  • Complete equipment set: simple execution of the experiments

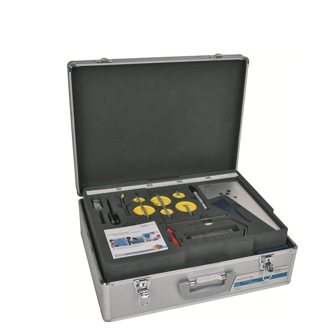

  • The equipment is stored in a robust aluminum case with removable lid

  • Foam insert for a quick control of completeness and secure transport of the set

  • Experimenting literature for all teacher experiments are delivered as PDF documents on a DVD

  • Matched with international Curriculum: all topics are covered

- Equipment and Technical Data:

  • The equipment set consists of all necessary components for the experiments

  • Robust storage case with foam insert fitting to the contained equipment

- Necessary accessories:

  • Demo Physics board with stand (02150-00)

  • DEMO advanced Mechanics 1 necessary accessories (15510-01)

- Optional accessories:

  • DEMO advanced Physics Supplementary Set Mechanics 2 (15511-88)

  • DEMO advanced Physics Set Linear Motion (Dynamics) (15512-88)

  • Mobile Demo Lab for demonstration experiments with the a magnetic board (02190-93)

- Scope of delivery:

  • Clamp on fixing magnet 02151-01, 1

  • Rod on fixing magnet 02151-02, 1

  • Hook on fixing magnet 02151-03, 1

  • Inclined plane f.demonstr.board 02152-00, 1

  • Scale for demonstration board 02153-00, 1

  • Pointers f. Demonst.Board, 4 pcs 02154-01, 1

  • Optical disk, magnet held 08270-09, 1

  • Torsion dynamometer 03069-03, 2

  • Weight holder, 10 g 02204-01, 2

  • Slotted weight, silver bronze, 10 g 02205-03, 4

  • Slotted weight, silver bronze, 10 g 02205-03, 4

  • Slotted weight, silver bronze, 50 g 02206-03, 2

  • Slotted weight, silver bronze, 50 g 02206-03, 2

  • Pulley,movable,dia.65mm,w.hook 02262-00, 1

  • Rod for pulley 02263-00, 1

  • Holding pin 03949-00, 1

  • Fish line, l. 100m 02090-00, 1

  • Helical spring, 20 N/m 02222-00, 1

  • Pulley,movable,dia.40mm,w.hook 03970-00, 1

  • Block and tackle, with 4 pulleys 02265-00, 1

  • Center-of-gravity plate 02300-01, 1

  • Balance pan, plastic 03951-00, 2

  • Lever 03960-00, 1

  • Pointer for demonstration lever 03963-00, 1

  • Roller for inclined plane 11301-01, 1

  • Rubber bands, 50 pieces 03920-00, 1

  • Support plate on fixing magnet 02155-00, 1

  • Sinker, aluminum 03903-01, 1

  • Beaker, Duran®, high-form | Volume: 600 ml 36006-00, 1

  • Marker, black 46402-01, 1
