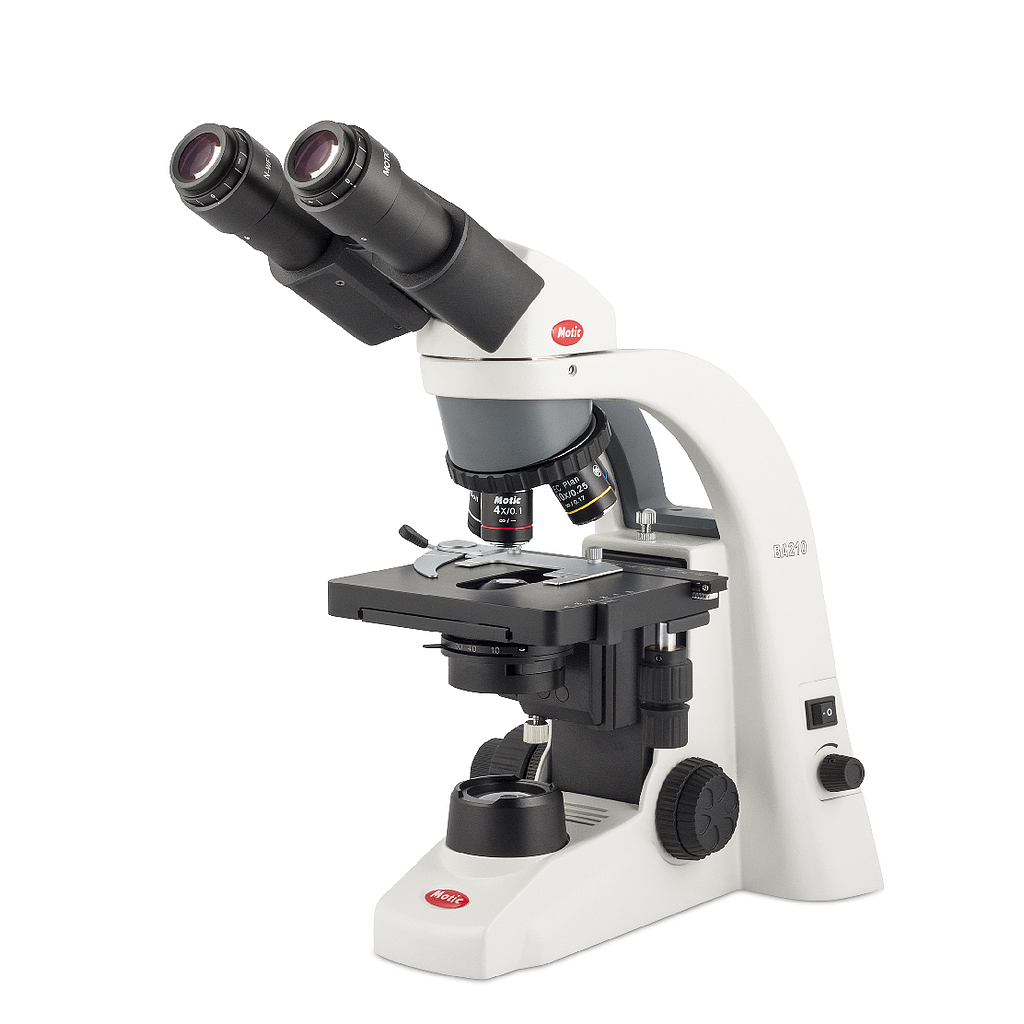

PHYWE 63101-99 MOTIC 显微镜 BA210 Bino LED

- Function and application:

The BA210 binocular microscope is a robust student instrument that brings professional, repeatable image quality results to all of its intended applications,  with a new generation of EC Plan Achromatic objectives provide a fully corrected intermediate image for crisp and clear visual and digital results.

- Equipment and technical data:

Binocular head Siedentopf type, 30° inclined, 360° rotating

Widefield high eyepoint eyepieces N-WF10X/20mm with diopter adjustment on both eyepieces and rubber eyecups

Reversed quadruple revolving nosepiece

Objectives: Infinity corrected CCIS EC Plan Achromatic DIN 45 (4X, 10X, 40X S, 100X S-Oil)

Coaxial coarse and fine focusing system with tension adjustment

Built-in low position coaxial mechanical stage

Focusable Abbe condenser N.A. 1.25 with iris diaphragm and slot

LED illumination 3W with intensity control

Power supply 100V-240V (CE)

Included: Immersion oil (5ml), power cord, thumb screw, vinyl dust cover
