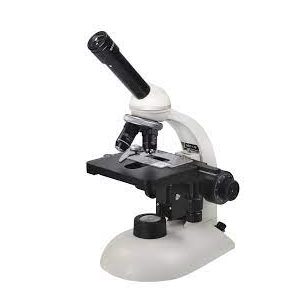

PHYWE MIC-119A 教育单目显微镜 (1000x)

Function and Applications:

• Modern monocular mikroscope with 1000x magnification for a broad range of applications and users with exceedingly good price/perfomance ratio.

Benefits:

• Ideal to purchase in bulk, for equipping microscopy classes and lab courses

• 1000x magnification

• Mechanical stage

• Long-life and very bright LED illumination

• Resists to tilting on the table

Equipment and Technical Data:

• Monocular student microscope, 1000x magnification, with mechanical stage, LED illumination and rechargeable battery

• Eyepiece WF10x/18 mm, high eye point, secured by screw

• Achromatic objectives 4x, 10x, 40x (S), 100x (S, oil)

• Nosepiece for 4 objectives with click stops

• Mechanical stage: size 140 x 130 mm, moving range 78 x 30 mm

• Coaxial fine and coarse focussing with markings on fine focussing

• Illumination: 3 W LED (color temperature 5000 K), adjustable

• Condensor: Abbe N.A. 1.25 with iris diaphragm

• Integrated power supply 100…240 V, 50/60 Hz

• rechargeable battery for off-the-grid operation

• Includes dust cover

• Dimensions: 38 cm x 21 cm x 23 cm (H x W x L)

• Weight: 5.5 kg

Scope of delivery:

• PHYWE Monocular student microscope MIC-111A, 400x, mechanical stage MIC-111A, 1

• Objective 100x, N.A. 1.25, achromatic, for MIC-100 series MIC-100X, 1
