PHYWE P2460403 微波的传播---平方反比定律试验设备套

>> Principle

The intensity of a source of radiation, e.g. a microwave transmitter, at any given location depends on the distance of this location from the (approximately punctiform) source. Actually, due to its antenna geometry, a microwave transmitter can only be regarded as a punctiform source of radiation at long distances, which is why it is described as a virtual source for shorter distances.

>> Benefits

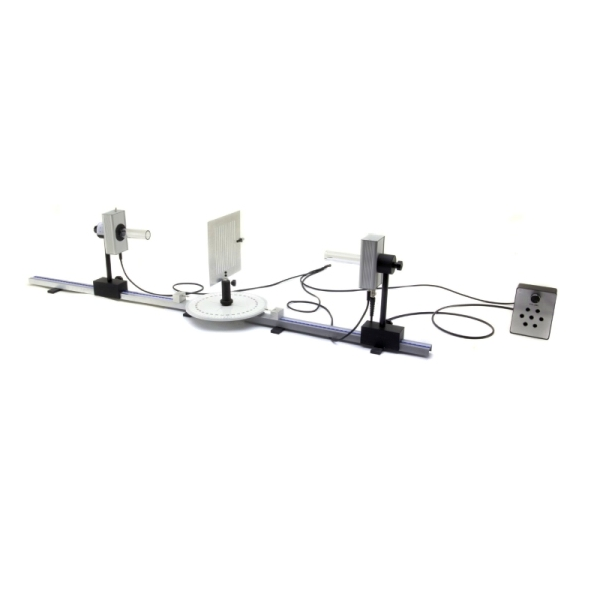

Convenient all-in-one set includes control unit, transmitter and receiver as horn antennae, microwave probe, microwave benches, grating, slit plates, prism, and reflection/absorption plates

With the same set, all aspects of microwave physics can be studied quantitatively: polariziation, reflection, transmission, refraction, propagation, diffraction, interference, inverse square law, standing waves, conservation of energy in reflection and transmission

Very detailed experiment guides for all experiments

>> Tasks

The radiation intensity of the microwave transmitter is measured for various distances and the position of the virtual source is determined.

>> What you can learn about


Electromagnetic waves

Spherical waves

Virtual source


>> Scope of Delivery

[Device x Quantity]

Microwave set II, 110...240 V x 01

Barrel base expert x 01

Support rod, stainless steel, different lenghts | Length: 250 mm x 01

Right angle clamp expert x 01
