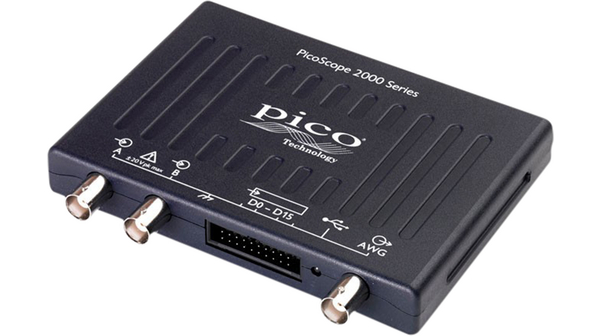

PICO PicoScope 2208B MSO PC 示波器 (100Mhz,2 channels)
制造商: PICO Model: PicoScope 2208B MSO P/N: PQ011 保障: 12 Month - 联系
Bandwidth 100 MHz
Maximum sampling rate 1GS/s
Buffer memory 128MS
AWG bandwidth 1MHz
Bandwidth (–3 dB) 100 MHz
Rise time (calculated) 3.5ns
Software lowpass filter Not applicable
Vertical resolution 8 bits
put ranges ±50 mV, ±100 mV, ±200 mV, ±500 ±1 V, ±2 V, ±5 V, ±10 V, ±20 V mV,
Input sensitivity 10 mV/div to 4 V/div (10 vertical divisions)
Oscilloscope — vertical (digital inputs, MSOs only)
Input channels 16 channels (2 ports of 8 channels each)
Input connectors 2.54 mm pitch, 10 x 2 way connector
Maximum input frequency 100 MHz (200 Mb/s)
Minimum detectable pulse width 5 ns
Input impedance 200 kΩ ±2% ∥ 8 pF ±2 pF
Input dynamic range ±20 V
Digital threshold range ±5 V
Overvoltage protection ±50 V
Threshold grouping Two independent threshold controls: Port 0: D0 to D7, Port 1: D8 to D15
Threshold selection TTL, CMOS, ECL, PECL, user-defined
Port threshold accuracy ±350 mV (inclusive of hysteresis)
Hysteresis < ±250 mV
Minimum input voltage swing 500 mV pk-pk
Channel-to-channel skew 2 ns typical
Model: 2408B MSO
Warranty: 12 months
Manufacture: Pico
Bandwidth 100 MHz
Maximum sampling rate 1GS/s
Buffer memory 128MS
AWG bandwidth 1MHz
Bandwidth (–3 dB) 100 MHz
Rise time (calculated) 3.5ns
Software lowpass filter Not applicable
Vertical resolution 8 bits
put ranges ±50 mV, ±100 mV, ±200 mV, ±500 ±1 V, ±2 V, ±5 V, ±10 V, ±20 V mV,
Input sensitivity 10 mV/div to 4 V/div (10 vertical divisions)
Oscilloscope — vertical (digital inputs, MSOs only)
Input channels 16 channels (2 ports of 8 channels each)
Input connectors 2.54 mm pitch, 10 x 2 way connector
Maximum input frequency 100 MHz (200 Mb/s)
Minimum detectable pulse width 5 ns
Input impedance 200 kΩ ±2% ∥ 8 pF ±2 pF
Input dynamic range ±20 V
Digital threshold range ±5 V
Overvoltage protection ±50 V
Threshold grouping Two independent threshold controls: Port 0: D0 to D7, Port 1: D8 to D15
Threshold selection TTL, CMOS, ECL, PECL, user-defined
Port threshold accuracy ±350 mV (inclusive of hysteresis)
Hysteresis < ±250 mV
Minimum input voltage swing 500 mV pk-pk
Channel-to-channel skew 2 ns typical
