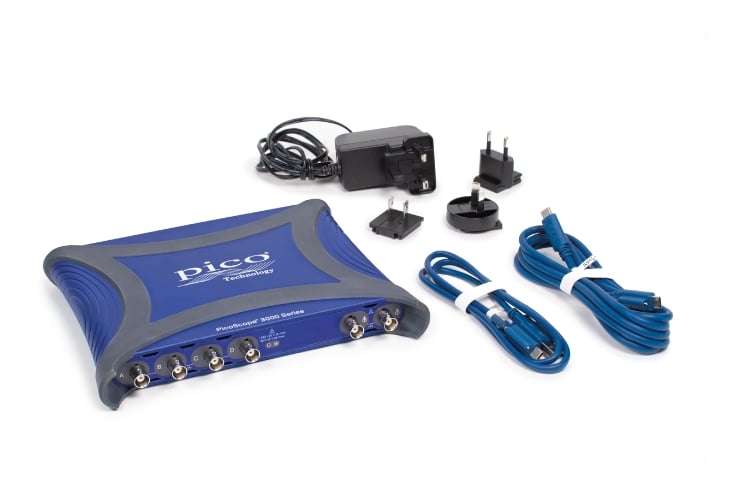

PICO 3418E 数字USB示波器 (500 MHz, 5 GS/s, 4CH)
制造商: PICO Model: 3418E - 联系
Vertical (analog channels)
Input channels: 4
Bandwidth (–3 dB): 500 MHz
Rise time (10% to 90%, −2 dB full scale): 925 ps
Selectable bandwidth limit 8-bit mode: 20, 50, 100, 200, 350, 500 MHz
Selectable bandwidth limit 10-bit mode: 20, 50, 100, 200 MHz
Vertical resolution: 8 bits, 10 bits
Enhanced vertical resolution (software): Hardware resolution + 4 bits
Horizontal
Maximum sampling rate (real time, 8-bit mode): 5 GS/s on 1 channel, 2.5 GS/s on 2 channels, 1.25 GS/s on 3-4 channels
Maximum sampling rate (real time, 10-bit mode): 2.5 GS/s on 1 channel, 1.25 GS/s on 2 channels, 625 MS/s on 3-4 channels
