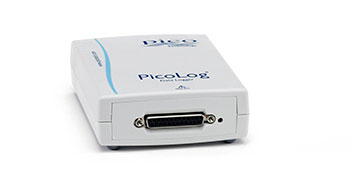

PICO PicoLog 1012 10-bit, 12 channel data logger

Input: Analog inputs:12

Resolution: 10 bits


Accuracy: 1% of full scale

Maximum sampling rates:

PicoScope: 1 MS/s[1]

PicoLog: 1 kS/s[2]

PicoSDK (block mode): 1 MS/s[1]

PicoSDK (streaming): 100 kS/s[1]

Capture memory

PicoScope (and PicoSDK block mode)

Sample rates over 100 kS/s: 8000 samples [1]

Lower sample rates: 1 million samples [1]

PicoLog (and PicoSDK streaming mode):Up to available PC storage


Analog bandwidth (–3 dB): DC to 70 kHz

Input type: Single-ended, unipolar

Input voltage range: 0 to +2.5 V

Overvoltage protection: ±30 V to ground

Input coupling: DC

Input impedance: 1 MΩ


Output:

Digital outputs (D0…D3): 2

Digital outputs (PWM): Period

Duty cycle: None

Digital outputs (all): 100 mV (typical)

Logic low voltage: 100 mV (typical)

Logic high voltage: 1 kΩ resistors in series with outputs

Current limit:

100 mV (typical)

3.3 V

1 kΩ resistors in series with outputs

Power output for sensors: 2.5 V @ 10 mA, current-limited

Environmental

Stated accuracy temperature range: 20 to 50 °C

General operation temperature: 0 to 70 °C

Relative humidity (operating): 5 to 80 %RH

Storage temperature: –20 to +80 °C

Storage humidity: 5 to 95 %RH

Physical properties

Dimensions: 45 x 100 x 140 mm (1.77 x 3.94 x 5.51 in)

Weight: <200 g (7.05 oz)


Software

PicoLog, PicoScope and PicoSDK

Available from www.picotech.com/downloads

PicoSDK example code

Available from Pico’s GitHub organization page, github.com/picotech

PicoLog user interface languages

English, French, Italian, German, Spanish, Korean, Japanese, Chinese (simplified), Russian

PicoScope user interface languages

Chinese (simplified), Chinese (traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese,

Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Swedish, Turkish

PC requirementsrements

PicoLog

Microsoft Windows 7, 8 or 10, 32-bit and 64-bit versions, macOS 10.9 (Mavericks) or later, 64-bit only, Linux*, 64-bit only.

Hardware requirements as operating system.

*PicoLog for Linux is distributed as an AppImage, so you can install it without superuser permissions: see appimage.org for further

information. The software has been tested on OpenSUSE and Ubuntu.

PicoScope[4]

PicoScope Stable: Windows 7, 8 or 10 (32 or 64-bit).

PicoScope Beta: macOS 10.9 (Mavericks) or later, 64-bit only, Linux (OpenSUSE and Ubuntu).

Hardware requirements as operating system.

PicoSDK[4]

Only available for Windows. Drivers also available for 64-bit Linux and macOS.

PC interface

USB 2.0 full speed (USB 1.1 and USB 3.1 compatible)

General

Accessories supplied

USB 2.0 cable, Quick Start Guide

PC interface

USB 2.0 full speed

I/O connector

25-way D female

Power requirements

Powered from USB port

Ground fault current protection

0.9 A thermal self-resetting fuse

Compliance

European EMC and LVD standards

FCC Rules Part 15 Subpart B

RoHS compliant
