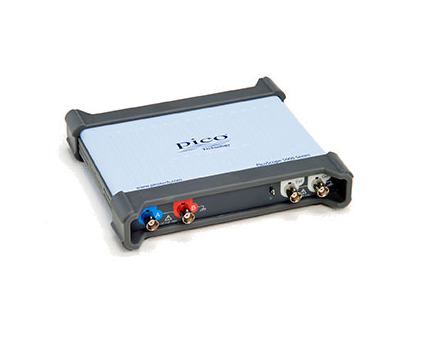

PICO PicoScope 5244D USB灵活显示度的示波器 (2 channels, 200 MHz)

Bandwidth (–3 dB): 200 MHz

Input type: Single-ended, BNC connector

Maximum equivalent sampling rate: 10 GS/s

Bandwidth limiter: 20 MHz, selectable

Enhanced vertical resolution: Hardware resolution + 4 bits

Input ranges: ±10 mV to ±20 V full scale, in 11 ranges

Input sensitivity: 2 mV/div to 4 V/div (10 vertical divisions)

Input coupling: AC / DC

Input characteristics: 1 MΩ ± 1% || 14 ±1 pF

Analog offset range (vertical position adjust):

±250 mV (10, 20, 50, 100, 200 mV ranges),

±2.5 V (500 mV, 1 V, 2 V ranges),

±20 V (5, 10, 20 V ranges)

Analog offset control accuracy: ±0.5% of offset setting, additional to basic DC offset accuracy

Overvoltage protection: ±100 V (DC + AC peak)

USB connection: USB 2.0, USB 3.0

External DC power supply

Voltage (V): 5 V

Current (A): 1.6 A pk

Power (W): 8 W (@5 V)
