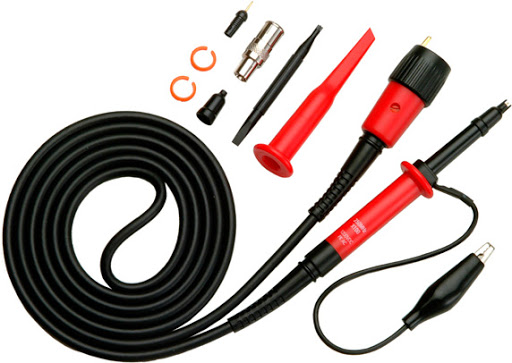

Pintek CP-3308R 示波器高压探头(300MHz,2000V,X100,读出)

Bandwidth: 300 MHz
Cursor Readout O
Max. Working Voltage: CAT I 2000V CATII 1500V
Division Ratio: x 100
Rise Time: 1.2 ns
Input Resistance: 100 MΩ
Input capacitance: 5.5PF
Compensation Range: 10 ~ 35 PF
Cable Length: 1.35 M
Temperature Coefficient: < 200 PPM / ℃
DC Accuracy: < 1%
Safety APPL. CE, EN61010-031 CAT II
Weight: 93 g

Detail

Catalog (Pg1-25)

Catalog (Pg26-37)

Manual

- View Enlargement -
 100:1 scope probe
 300MHz Bandwidth
 Read out Function
 Division Ratio x 100
 100MΩ Fix Input Impedance
 1500V DC Working Voltage  (CAT Ⅱ)
 2000V AC peak to peak MAX.  (CAT Ⅰ)
 CE Approved.
