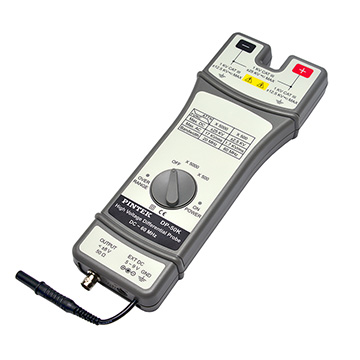

PINTEK DP-50K Differential Probe (50KVp-p / 60MHz)

Bandwidth:

    DC - to 60 MHz (-3 dB) for X500

    DC - to 20 MHz (for attenuation X5000)

Attenuation: x 500, or X5000

Accuracy: ± 2%

Voltage Input Ranges (DC+AC peak to peak):

    ≦ 25 KV DC for X5000, (i.e about 17 KV RMS or 25 KV DC)

    ≦ 2.5 KV DC for X500, (i.e about 1.7 KV RMS or 2.5 KV DC)

Permitted Max Input Voltage

    Max differential voltage: 50 KVp-p (DC+AC peak to peak)

    Max voltage between each input terminal and ground: 8.8 KV RMS

Input Impedance:

    Differential: 140 MΩ // 3 pF

    Between terminals and ground: 280 MΩ // 1.5 pF

Output: ≦ ± 5 V

Output Impedance: 50 Ω

Rise Time: 5.8 ns for X500; 17.5 ns for X5000

Rejection Rate on Common Mode: 60 Hz: ＞80 dB , 100 Hz: ＞60 dB, 1 MHz: ＞50 dB

Power Supply: External 9 V DC power supply.

Consumption: 120 mA max (1.1 WATT)
