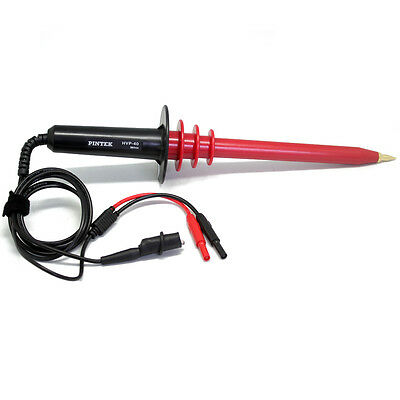

PINTEK HVP-40M 高压棒
制造商: PINTEK Model: HVP-40M 来源: Taiwan - 联系
- 现货: 3 个
DC 40KV CAT II Pollution 2 | |
![]() | 600MΩ Impedance |
![]() | 25KV ± 2%, 40KV ± 3% |
![]() | T.C. 200 ppm/oC |
![]() | Positive Polarity only. |
![]() | Resolution 1KV |
![]() | Need not power. |
![]() | CE, TUV GS, UL, CUL, IEC1010 |
SPECIFICATIONS ( 20 ± 5℃, RH < 80% )
! WARNING !
?Before taking any measurements, first connect the alligator clip of this probe to earth ground and make sure connection is electrically good.
Input impedance:600MΩ
Maximum operation voltage:40KV DC , CAT II , Pollution 2
Polarity:Positive only
Display:Analog indicate
Accuracy:Factory calibrater 25KV ± 2%
?????????FULL scale 40KV ± 3 %
Temperature Coefficient:≦ 200ppm / ℃
Maximum loading Current:≦ 70μA
Maximum loading power:≦ 3 watt
Voltage Range:40KV / 1 Range
Voltage resolution:1KV
Power source:Need not power
Operating temperature:0 ℃ ~ + 50 ℃
Storage temperature:- 20 ℃ ~ + 70 ℃
Ground lead length:90cm ( 35 " )
Dimensions:420 L x 80ψ
Weight :360g
