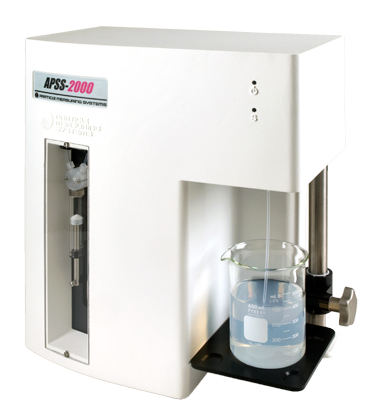

PSM APSS-2000自动化注射采样系统(2 - 125μm或1.5 - 125μm)

  • 制造商: PMS
    Model: APSS-2000
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Application
+ Pharmaceutical parenteral monitoring to U.S., EP, JP and FDA standards
+ Parts/medical device cleanliness testing
+ Laboratory water sampling for purified water testing and water for injection (WFI)
+ Filter efficiency testing
Liquid Sampler SLS-1000
Syringe Size 1, 5, 10, and 25 ml (10 ml is standard and included)
Sampling Mode Vacuum
Minimum Sample Volume 0.4 ml @ 20 ml/min, 0.2 ml @ 10 ml/min
Wetted Surface Materials Glass, Teflon
Dimensions (H x W x L) 15 x 9 x 17.1 in (38.1 x 22.9 x 43.4 cm) Including particle counter
Weight (Particle Counter) 30 lb (13.6 kg) Including particle counter
Power 100 – 240 V, 50 – 60 Hz
Environment Temperature Temperature 50 – 86 °F (10 – 30 ºC)
Humidity 0 – 98% non-condensing
Liquid Sensor LiQuilaz® E-20P; LiQuilaz® E-15P
Location Internal to SLS-1000
Size Range 2 – 125 µm; 1.5 – 125 µm
Size Channels 15
Flow Rates 10 or 20 ml/min
Volume Sampled 100%
Maximum Concentration 10,000 per ml¹
Sample Temperature 50 – 122 °F (10 – 50 °C)
Zero-count Level < 1 count per 10 ml
Capillary Size 0.5 x 0.7 mm
Maximum Pressure 25 psi
Laser Source:  Laser diode

Details

Catalog
