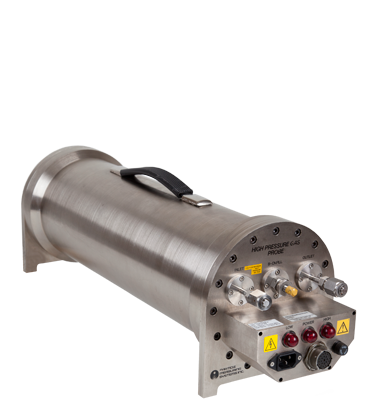

PDS-E的HPGP-101-C高压气体探头

  • 制造商: PMS
    Model: PSM HPGP-101-C
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




APPLICATIONS
+ Qualification of gas distribution systems
+ Process gas monitoring
+ Reactive gas monitoring
HPGP-101-C
+ Size channels 8 channels with thresholds at: 0.1, 0.2, 0.3, 0.5, 1.0, 2.0, 3.0, 5.0 µm
+ Flow rate 0.1 SCFM (2.8 LPM)
+ Sample volume 0.1 SCFM (2.8 LPM)
+ Counting efficiency* > 50% at 0.14 µm
+ Zero count level < 2/ft3 or < 0.2/min
+ Maximum concentration** 3,000/ft3
+ Optical design Passive cavity with parallel processing array detector
+ Optical system Wide angle 90° scattering collecting optics with greater than 2π steradians solid angle
+ Laser type HeNe
+ Data system PDS-E
+ Calibration Calibration materials used are traceable to the US National Institute of Standards and Technology (NIST).
 + Power 100, 115, 220 – 230, or 230 – 240 V, 50 – 60 Hz, 0.5 A
+ Environment Temperature: 0 – 45 °C. Humidity: non-condensing. Maximum altitude: 9,842 ft (3,000 m).
+ Dimensions (l, w, h) 66 x 20 x 23 cm
+ Weight 20.4 kg
PDS-E
+ Number of sensors 1
+ Sampling interval 1 second to 8:00:00 (hh:mm:ss)
+ Data management and analysis Facility Net software
+ Computer interface RS-232, bi-directional; Ethernet (via PMS protocol, Modbus, or OPC)
+ Power 100 – 240 VAC, 50 – 60 Hz, 0.63 A
+ Environment Temperature: 0 – 45 °C. Humidity: noncondensing. Maximum altitude: 9,842 ft (3,000 m).
+ Dimensions (l, w, h) 18 x 22 x 32 cm
+ Weight 5.2 kg
