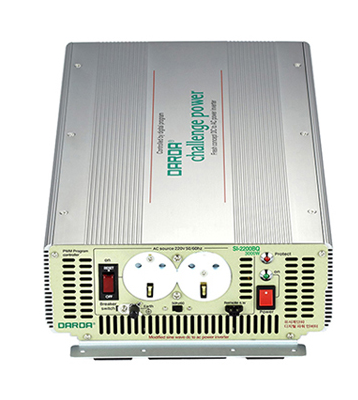

PNKHITECH DP-SI-2200BQ 逆变器(24VDC / AC228V,3000W,修正正弦波)

SPECIFICATIONS
DC input voltage : 24V
DC voltage standard : 26.8V
AC voltage standard : AC228V
Max output power time 15~16min : 3000W
Output power continuous : 2400W
Surge rating : 6000W
Effciency et rated power : 91%
Effciency et max power : 88%
THD [max] : 25%
No load current : no fan : 0.36A
on fan : 0.70A
Low battery shut down : 20V
Low battery return on power : 22.4V
High battery shut down : 31.0V
High battery return on power : 28.0V
Over temperature protection : -25 °C ~ +76 °C
Over temperature power on : 58 °C
Output wave form : Fan on temperature 41 °C(±3 °C)
Dimensions [W×H×D(mm)] : 225×89×405
Weight : 4.0kg
