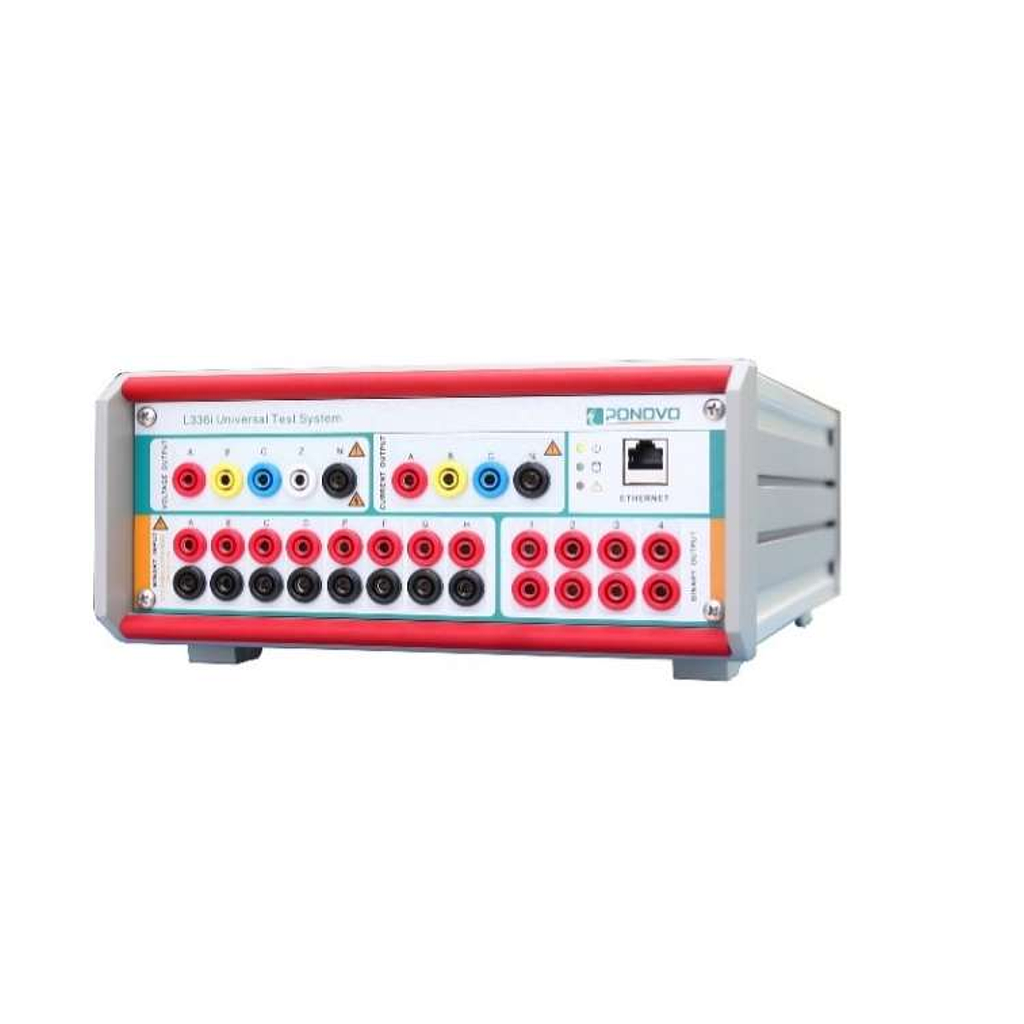

Ponovo L336i-E SUPER-LIGHT三相继电器测试套件

AC Current outputs

Control: Independent control of amplitude, frequency and phase angle

Range: 3×20A / 1×60A

Accuracy: error < 0.08 % rd. + 0.02 % rg. guar./ error < 0.03% rd. + 0.02 % rg. typ.

Resolution: 1mA

Output power: ≥140VA at 20A, LN

Output response time: <100µs

Distortion (THD%): <0.05% type.,<0.1% guar., at >0.5A

Frequency- Amplitude characteristic: ≤± 0.1%~± 0.5% (1Hz~1kHz)

Output time: continuous (<10A/channel); >70s (10~20A/channel); >15s (≥20A/channel)

AC voltage outputs

Control: Independent control of amplitude, frequency and phase angle

Fourth voltage (Uz): 0~300V

Frequency

Sine signal: DC, 0.001Hz~1000Hz

Accuracy: 0.3ppm

Resolution: 0.001Hz

Phase angle

Range: -360°~+360°

Accuracy: ±0.05°type., ±0.1°guar.

Resolution: 0.001°

Power Supply

Input: 110-240V AC

Frequency: 50/60Hz

Max. current: 6.3A

DC Current outputs

Range: 3×±0~10A / 1×±0~30A

Accuracy: ±5mA (0.2A~1A) ±0.5% (1A~10A)

Resolution: 1mA

Output power: 3×100W at 10A / 1×300W at (30A 10V)

DC voltage outputs

Range: 4×±0~300V / 1×±0~600V

Accuracy: ±50mV (2V ~10V), ±0.5% (10 ~300V)

Resolution: 10mV

Output power: 100W at 300V

DC voltage measuring input

Measuring range: 0~ ±10V

Accuracy: error <0.02% rg. typ. (<0.05% rg. guar.)

Input impedance: 100KΩ

DC current measuring input

Measuring range: 0~±20mA

Accuracy: error <0.02% rg. typ. (<0.05% rg. guar.)

Input impedance: 50Ω

Operation temperature: 0~+50℃

Storage temperature: -25~+70℃

Relative humidity: 5~95% non - condensing

Dimension(W×H×D): 256mm × 110mm× 395mm

Weight: 8.6 kg
