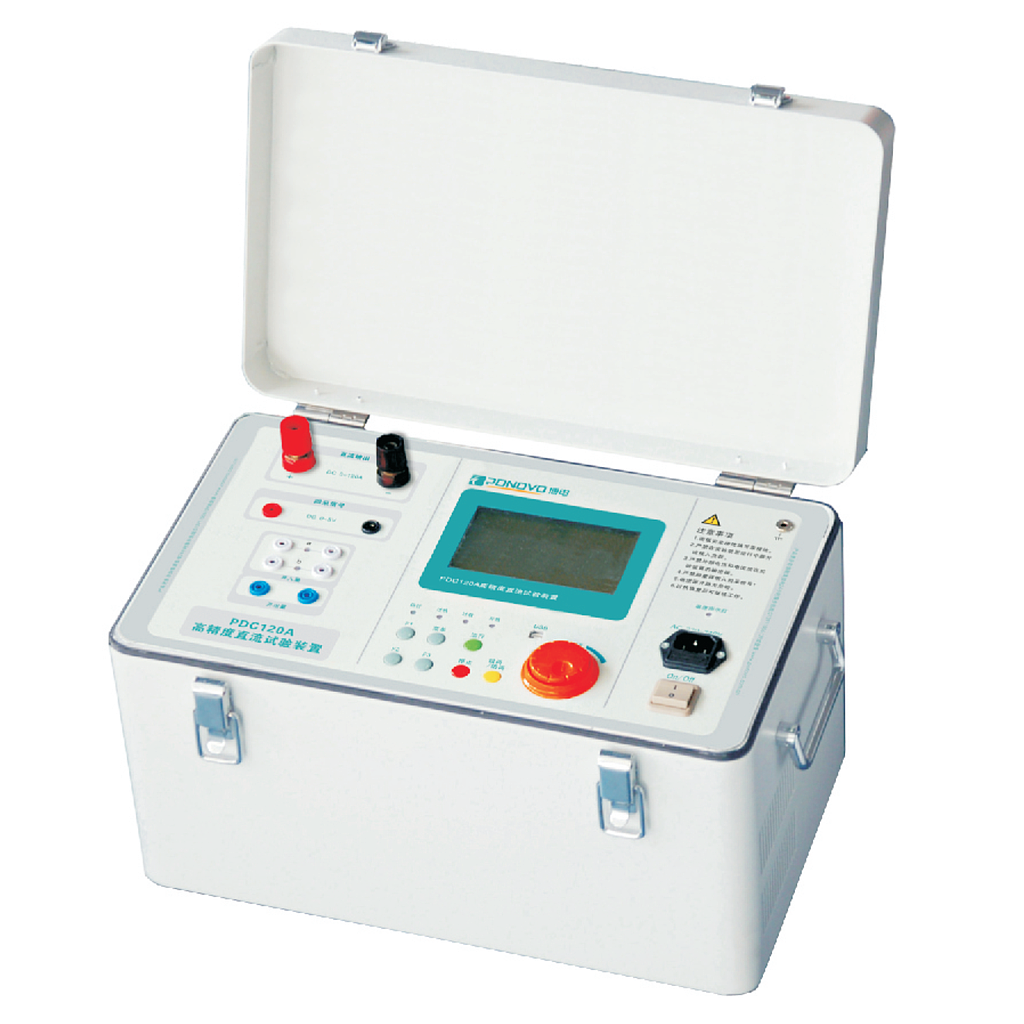

Ponovo PDC200A 单相直流注入套件 (0 ~ 200A)

Output range: 0 ~ 200A

Accuracy: ±0.1%

Port voltage: 5 V

Max. current load: 200A

Output time: continuous

10%-90% increasing time: 0A-200A (20s)

Binary inputs: 2 independent pairs binary inputs, be capable of judging the open/close function; dry contact and compatible with 30V-250V electric potential; automatic recognition of polarity

Binary output: One pair; contact capacity: 250V DC/0.5A 250V AC/8A

Timer accuracy: ±1ms（0.001～1s） ±0.1%（1～999.999s)

Display: 4.8inch high resolution LCD display screen

Power supply: Single phase 220V 50HZ -10%+20%

Size: 330mm x250mm x 260mm

Weight：10kg

Temperature: 0℃ ～40℃

Humidity≤90%non-condensing

Pressure:86kPa～106kPa
