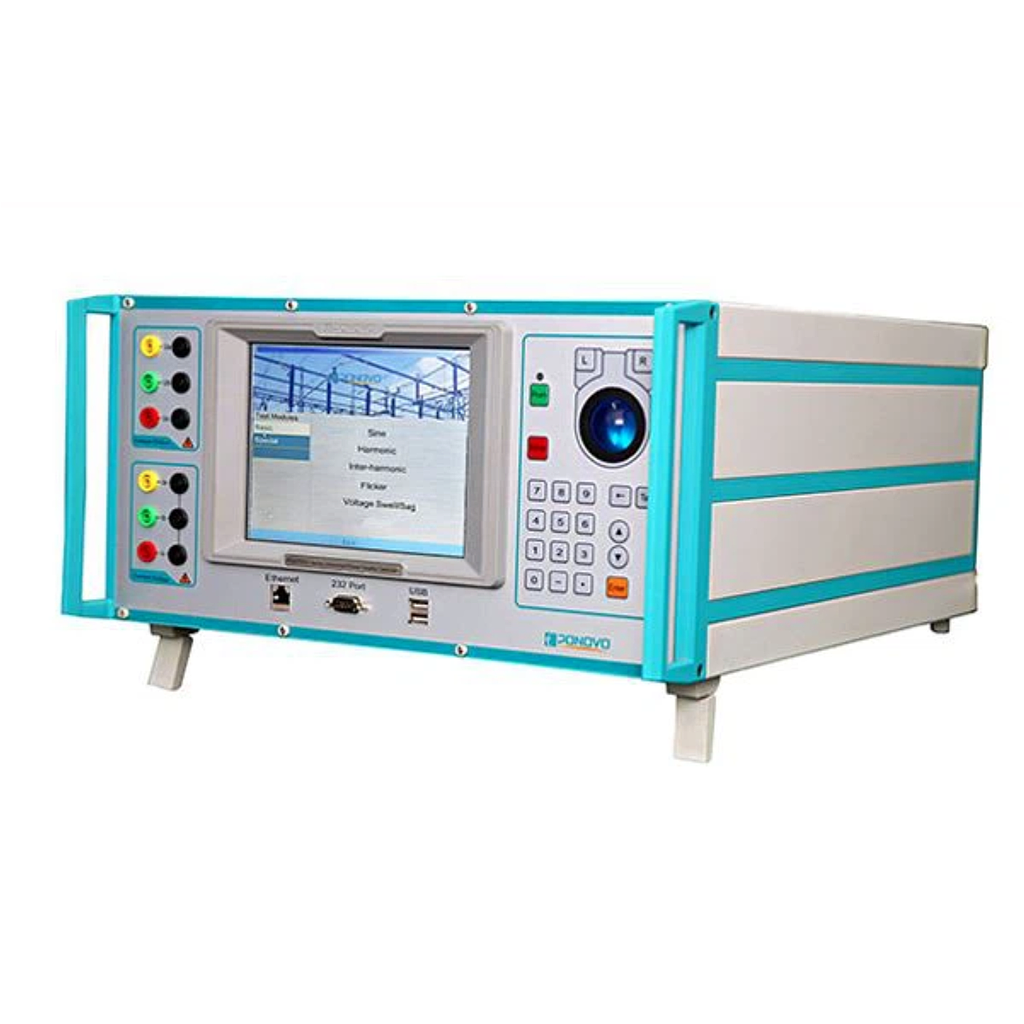

Ponovo PQC700A‐05/240 通用电能质量校准器 (10A; 240V)

Precision: 0.05%

Max voltage output: 240V

Current output: 10A (240V output)

Three‐phase AC Voltage Output

Range: 240V or 480V

Resolution: 0.1mV@V<10V; 1mV@V≥10V

Stability: ±0.01%/2min @V≥10V

THD: ≤0.1%@V≥10V

Output load: >100mA

Output power: ≥24VA or 48VA

Fundamental wave amplitude error: ≤±(0.04%rd. + 0.01%Vrg.)

Modulation waveform: Sine

Modulation frequency: 0.1Hz‐40Hz

Three‐phase AC Current Output

Range: 10A

Resolution: 0.1mA

Stability: ±0.01%/2min @I≥0.5A

THD: ≤0.1%@I≥0.5A

Max output load: 0.4Ω

Max output power: 40VA

Fundamental wave amplitude error: ≤±(0.04%rd. + 0.01%Irg.)

Modulation waveform: Sine

Modulation frequency: 0.1Hz‐40Hz

Fundamental Wave Power

Active power stability: ±0.02%/2min @I≥1A, V≥50V, Power factor≥0.5

Active power error: ≤±0.05%rg. @I≥1A, V≥50V, Power factor≥0.5 rg.=Vrg.*Irg.

Fundamental Wave Phase

Range: ‐180° ~ +180°

Resolution: 0.01°

Error: ≤±0.05° for 05 model @I≥1A, V≥50V

Fundamental Wave Power Factor

Error: ≤±0.001° for 05 model @I≥1A, V≥50V

Fundamental Wave Frequency

Range: 40Hz – 65Hz

Resolution: 0.001Hz

Error: ≤±0.002Hz @I≥1A, V≥50V

Three‐phase Voltage/Current Unbalance

Three‐phase voltage unbalance error: ≤±0.05%@V≥50V

Three‐phase current unbalance error: ≤±0.2%@I≥1A

Voltage Flicker

Variation: 0‐60%

Modulation waveform: Square wave, rectangular wave, sine wave

Variation frequency range: 0.008Hz‐40Hz, 0.5Hz‐40Hz

Pst error: ≤±1% @ Pst≥1 (230V, square wave modulation)

Voltage Swell/Sag/Interruption function

Environmental Conditions

Temperature: 20℃±5℃

Relative humidity: 45%~75%

Power Supply

Input: AC220V±10%

Frequency: 50Hz

Size and Weight

Dimension(W×H×D): 450mm × 235mm× 545mm

Weight: 39kg
