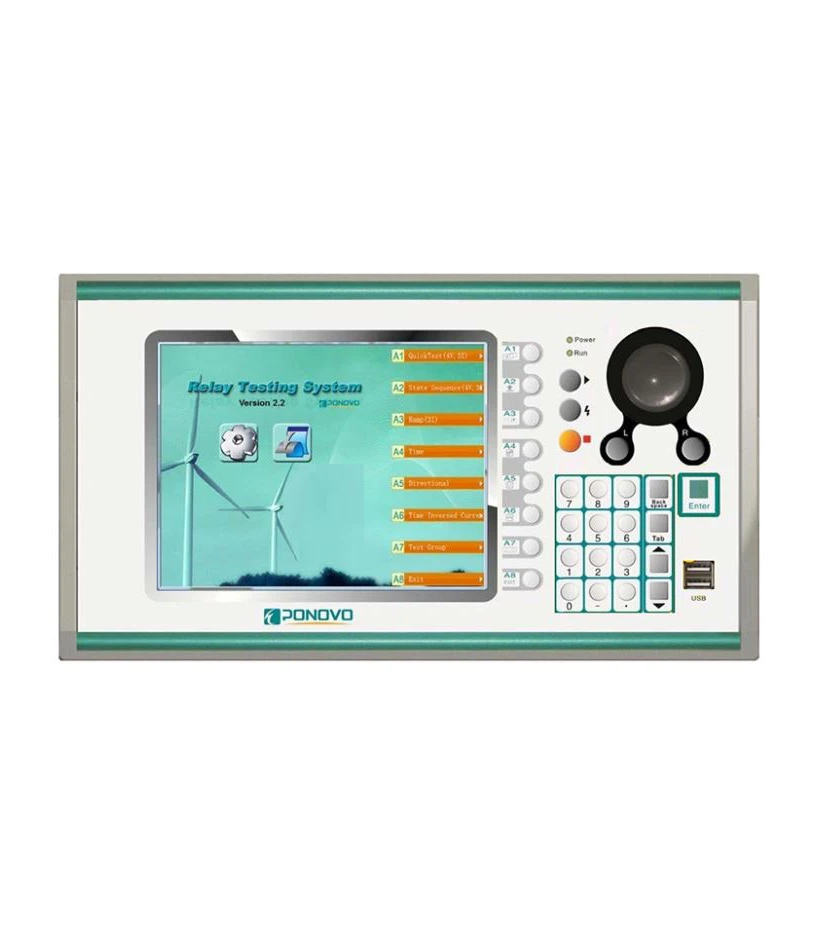

Ponovo PW866i 保护继电器测试设备

Voltage generators

Setting range

4-phase ac(L-N): 4×0~300V

1-phase ac(L-L): 1×0~600V

dc (L-N): 4×±0~300V

dc (L-L): 1×±0~600V

Power

4-phase ac(L-N): 4 x 75VA typ., at 300V; 4x50VA guar., at 300V

3-phase ac(L-N): 3x100VA typ., at 300V; 3x85VA guar., at 300V

1-phase ac(L-L): 1x 200VA typ., at 600V; 1x170VA guar., at 600V

dc (L-N): 4 100 W at ±300 V

Ranges: 300V

Resolution: 10mV for 300Vac

Distortion: < 0.05 % typ., (< 0.1 % guar.)

Current generators

Setting range

6-phase AC(L-N): 6×0~32A

3-phase AC(2L-N): 3×0~64A

1-phase AC(6L-N): 1×0~180A

dc(6L-N): 1×±0~180A

Power

6-phase AC(L-N): 6×450VA typ. at 32A; 6×400VA guar. at 32A

3-phase AC(2L-N): 3×800VA typ. at 64A; 3×700VA guar. at 64A

1-phase AC(6L-N): 1×1200VA typ. at 180A; 1×1000VA guar. at 180A

1-phase DC(6L-N): 1×1400W typ. at 180A; 1×1000W guar. at 180A

Ranges: 32A

Resolution: 1mA

Distortion: < 0.05 % typ. (< 0.1 % guar.)

Power supply

Nominal input voltage: 110~240Vac

Permissible tolerance: 90~260Vac

Nominal frequency: 50/60Hz

Permissible frequency: 45~65Hz

12 binary inputs, 8 binary outputs

Operation temperature: 0~+50ºC

Storage temperature: -25~+70ºC

Relative humidity: 5~95% non - condensing

Weight: 22kg

Dimensions (W ×H × D): 364mm × 200mm× 475 mm
